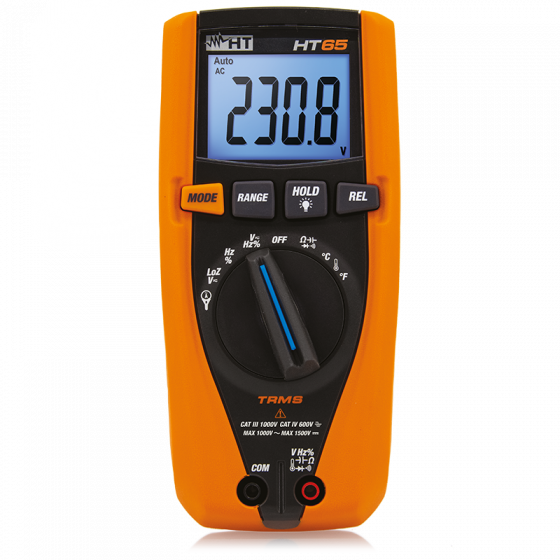

HT65 HT Instruments Multimeter
HT65 TRMS digital multimeter for DC voltage measurements up to 1500V
Features:
HT65 belongs to the TRMS CATIV 600V series of digital multimeters, made unique by the ability to measure DC voltage up to 1500V. It is also able to measure the temperature through the K probe, the AC / DC current with an external transducer, and the LoZ low impedance voltage input. Like the other multimeters in the series, it has an Autorange function and a defined backlit display.
Specifications:
Functions
- TRMS
- AC/DC voltage 1000VAC/1500VDC
- LoZ Input
- AC/DC current with external transducer
- Frequency
- Resistance
- Continuity with buzzer
- Capacity
- Diode test
- Duty Cycle (%)
- Temperature with K-type probe
- Protection category CAT IV 600V CAT III 1000V
- Measuring counts 4000
- Backlight
- Autorange
- Auto power off
- Data HOLD
- Relative measurement
- Power supply 1x 9V 6F22
- Size (L x W x H) 175x85x55
- Weight in grams (batteries included) 360
Guidelines
- CE MARK
- EMC: IEC/EN61326
- IEC/EN61010-1
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
| AC Voltage | 1.5 kV |
| DC Voltage | 1.5 kV |
| Resolution | 3.75 |
| Type | Handheld |
