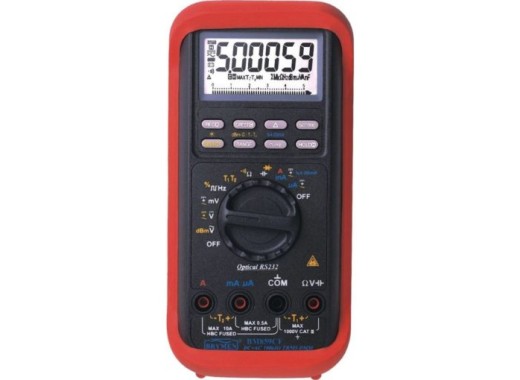

The Brymen BM859s is a True-RMS digital multimeter with features such as dBm, high resolution mode, MAX-MIN, Crest and more. On the 500.000 count display of this multimeter it is possible to display extremely accurate measurements, such as DC voltage. The meter has a Crest function, which automatically displays the peak value. The display has a backlight and is therefore always easy to read. The display is updated 5 times per second with a new measurement. Furthermore, the display has an ‘analogue’ bar-graph that updates 60 times per second and thus clearly indicates how the measured values relate to time. The multimeter has 3 display options. The display can show 999.999 counts for frequency, 500.000 for DCV and 50.000 for other measurements. The 500.000 mode has a lower update rate of 1.25 updates per second. The 50,000 count mode is updated an average of 5 times per second. The difference with the BM857s is that the BM859s has a more accurate DCV accuracy of 0.02% and can handle more bandwidth.
This multimeter can be used with an optional PC USB connection kit! Click here! Specifications Display 50.000 Counts
500.000 Counts (DCV)
999.999 Counts (Hz) Measurement frequency 5 measurements per second
1.25 measurements per second (500.000 counts mode) Measurement range Max. DC voltage range 1000V Max. AC & AC+DC voltage range 1000V Max. AC & AC+DC current range 10A Max. DC current range 10A Max. Resistance range 50M Temperature range -50°C — 1000°C Max. Capacity range 10 mF Frequency range 100 Hz — 2 MHz Other features Diode tester, Continuity, Crest 0.8 ms, dBm, %4-20mA loop current, 50/60Hz filter, DataHold, REC (MAX, MIN, MAX&MIN & AVG), T1 — T2 differential temperature readings Dimensions 186 x 87 x 35.5 mm Weight 390 gram Accessories
This meter is supplied including:
- 1x BKP60 type-K thermocouple
- Test leads
- User manual
- Holster
- Batteries (already installed)
