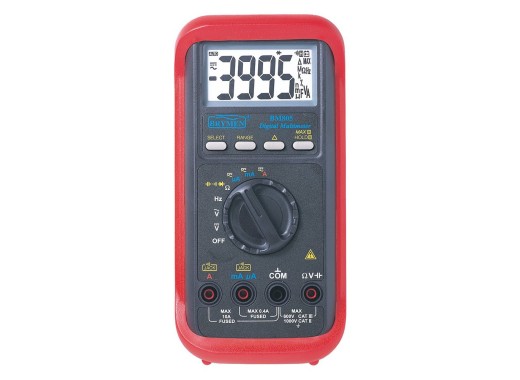

The Brymen BM805s is a budget multimeter that can perform most common measurements with high precision.
The 4,000-count display can show various measured values. The multimeter can, for example, test diodes, measure resistance, and it can even show capacitance. The multimeter offers the functionalities Auto Ranging, Max and Hold. The Max value can already be determined based on peaks of less than 30 ms.
If the test leads are connected incorrectly, the meter will signal this. The lifespan of the battery is prolonged with the Auto-Off functionality.
One of the images clearly shows that the build quality of the BM805s is very solid which is unique in this price range. The multimeter has 1,000 V fuses and contains high quality solder joints. In addition, it is possible to hang the multimeter or place it upwards with the help of the folding piece at the back.
Specifications Digits / Counts 3 34 digits / 4,000 counts Measuring range and accuracy SpecificationMeasurement rangeAccuracy Max. DC Voltage 1,000 V (±,0.5%+4) Max. AC Voltage 1,000 V (±,1.5%+5) Max. DC Current 20 A (±,1.2%+3) Max. AC Current 20 A (±,1.7%+4) Max. resistance 40 M (±,0.6%+4) Max. capacitance 3,000 F (±,3.5%+6) Frequency 0.001 Hz ~ 1 MHz (±,0.5%+4) When measuring currents, values up to 20 A can be measured for max 30 seconds. Afterwards the meter needs to cool for 5 minutes. Overload protection 1,000 Volt Automatic standby Yes Dimensions 186 x 87 x 35.5 mm Weight 390 g
Please refer to the brochure below for more information.
Accessories
This multimeter comes bundled with:
- 2x Test leads
- User manual (in English)
