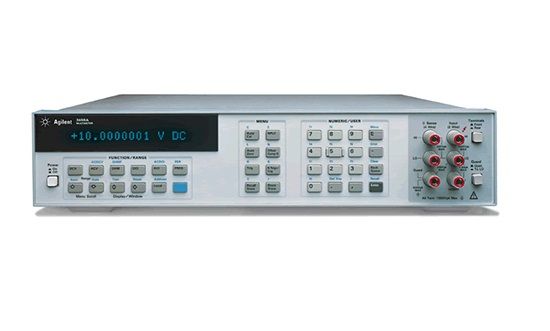

Мультиметр Agilent 3458A

Features:

Faster testing:

• Up to 100,000 readings/sec
• Internal test setups &gt,340/sec
• Programmable integration times from 500 ns to 1 sec

Greater test yield:

• More accuracy for tighter test margins
• Up to 8.5 digits resolution

Longer up-time:

• Two-source (10V,10kΩ) calibration, including AC
• Self-adjusting, self-verifying autocalibration for all functions and ranges, including AC

Superb transfer measurements:

• 8.5 digits resolution
• 0.1 ppm DC Volts linearity
• 0.1 ppm DC Volts transfer capability
• 0.01 ppm rms internal noise

Extraordinary accuracy:

• 0.6 ppm for 24 hours in DC Volts
• 2.2 ppm for 24 hours in Ohms
• 100 ppm mid-band AC Volts
• 8 ppm (4 ppm optional) per year voltage reference stability

Greater waveform resolution and accuracy:

• 16 to 24 bits resolution
• 100,000 to 0.2 samples/sec
• 12 MHz bandwidth
• Timing resolution to 10 ns
• Less than 100 ps time jitter
• Over 75,000 reading internal memory

Option (3458A-001):

• 3458A-001 — Extended Reading Memory (Expands total to 148 k bytes)

The Agilent 3458A System Multimeter heightens test performance in three phases of your production test: faster test system start-up, faster test throughput, and lower cost of ownership through longer system uptime, designed-in reliability, and fast and easy calibration.

Most instruments are operationally checked and shipped with Accessories and Operating Manuals. Contact your Application Engineer for details.

Технические характеристики
