Additional Features:
- High visibility 6 1/2 digit display
- Measurements of: DC Volts, AC RMS Volts
- Resistance and ratios can be made easily from the front-panel or via the HP-IB input
- DC voltage range (full scale) is from 0.1 V to 1000 V in 5 steps
- AC RMS voltage range (full scale) is from 1.0 V to 1000 V in 4 steps (10 Hz to 250 kHz)
- Resistance (2 WΩor 4 WΩ) range (full scale) is from 100 ohms to 1 GΩ in 8 steps
- Ratios of DC/DC, AC/DC or (AC + DC)/DC can be made easily and accurately
- 2 ppm stability
- 100 nV sensitivity (0.001% accuracy)
- Ohms compensated measurements and memory storage

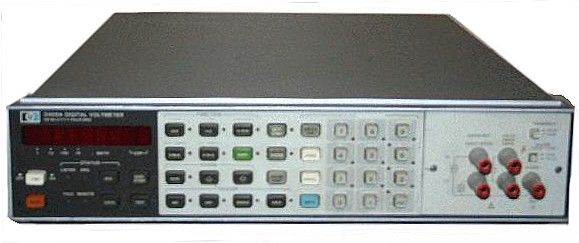

The Agilent 3456A is a microprocessor-based integrating digital multimeter designed for bench or system use.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| AC Voltage | 1 kV |
| DC Voltage | 1 kV |
| Resolution | 6.5 |
| Type | Bench |
