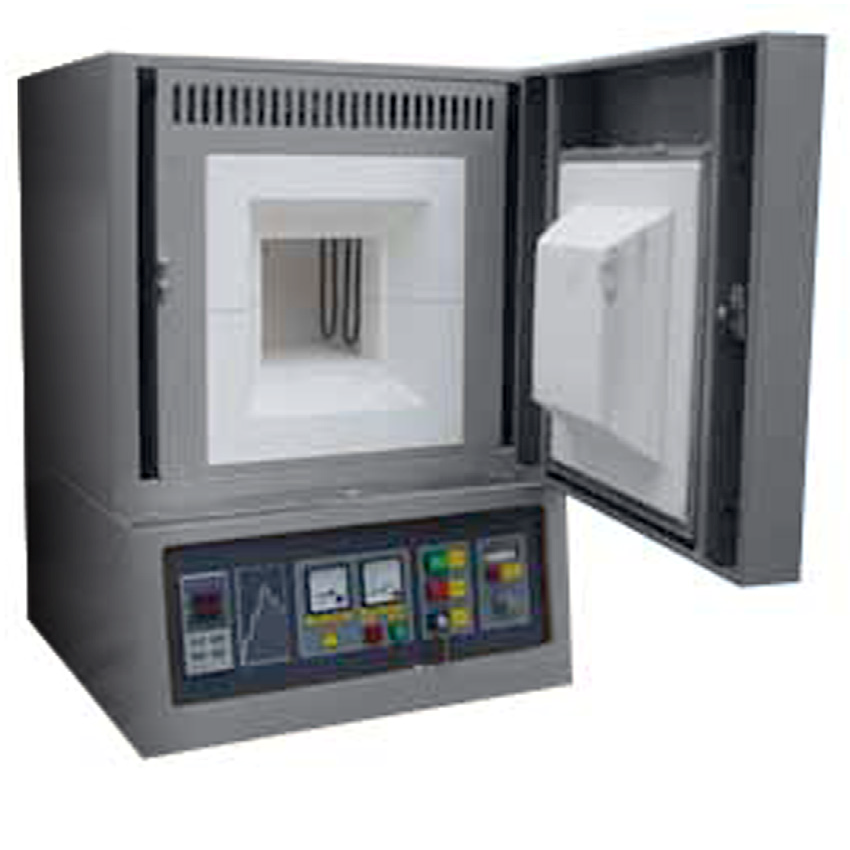

LABEC +1700°C Laboratory Furnaces are manufactured in Australia with high quality stainless steel for easy maintenance and excellent durability. The double skinned construction with fan cooling exterior keeps the exterior body cool at high temperatures and provides excellent stability.
Features:
- Light weight ceramic fibre insulation for rapid thermal cycling and heating
- Molybdenum disilicide elements, efficient and superior element life
- rear vent port for natural venting or gas purging
- door is firmly held closed with adjustable side locking latch and safety shut off with opening
Additional options — To suit requirements the addition of options such as programmable controllers, timers and cable access ports are also available.
Controller — A digital microprocessor based PID temperature controller controls the temperature within the range +300°C to +1700°C.
Data logging — When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Specifications:
Model Capacity
Internal Dimensions
(W x H x D)
Weight Power EHT01-17
1L 100 x 100 x 100mm
240V/32A EHT02-17
1.8L 120 x 120 x 130mm
EHT04-17
3.4L 150 x 150 x 150mm 100kg EHT08-17
8L 200 x 200 x 200mm
120kg EHT12-17
12L 200 x 200 x 300mm
EHT18-17
18.8L 250 x 250 x 300mm
415V/32A EHT27-17
27L 300 x 300 x 300mm
EHT36-17
36L 300 x 300 x 400mm
EHT64-17
64L 400 x 400 x 400mm
180kg
General Temperature Range +300°C to +1700°C, digital PID controller
Temperature Accuracy
1°C
Temperature Fluctuation
+/- 1°C
Construction Temperature sensor — Type B
Heating system — Molybdenum disilicide elements
Interior — Ceramic lined
Exterior — Stainless steel Options Programmable controllers, timers, access ports, safety lift-up door, cantilever door, higher temperature models available,
Safety Over temperature safety control, earth leakage breaker (ELB)
