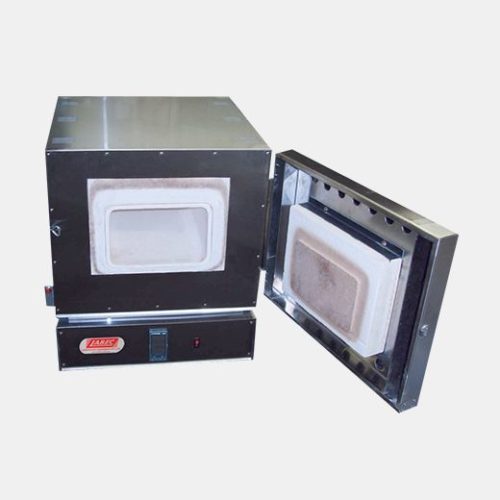

Ashing Muffle Furnaces (+300C to +1200C)
Ashing Muffle Furnaces are manufactured in Australia to meet AS1038.4-1995 standard. Manufactured with high quality stainless steel for easy maintenance and excellent durability. The double skinned construction keeps the exterior body cool at high temperatures and provides excellent stability. The Ashing furnace has 2 Inlet tubes located at the back of the furnace to prewarm air, the pre heated air flow maintains even temperature and meets the standard of 2-20 exchanges per minute at 800C. The furnace features light weight ceramic fibre insulation for rapid thermal cycling and heating by electric elements with a rear vent port for natural venting or gas purging. The door is firmly held closed with adjustable side locking latch and has a safety cut off when the door is opened during operation.
Controller
A digital display temperature controller controls the temperature within the range ambient +300C to 1200C.
Data logging
When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Additional options
To suit requirements the addition of options such as programmable controllers, timers and cable access ports are also available.
Standard features include:
- RCD/ ELB (earth leakage breaker)
- Over Temperature Alarm Cut Off
- Stainless Steel exterior
- Type N Thermocouple
Specifications:
Products
ECEMLS-1038
ECEMLM-1038
ECEMLL-1038
Capacity
4L
7L
15L
Internal Dimensions (H x W x D)
90 x 165 x 250mm
135 x 170 x 290mm
150 x 240 x 425mm
External Dimensions (H x W x D)
610 x 460 x 510mm
610 x 460 x 570mm
620 x 535 x 710mm
Temp. Controller
Digital PID Controller
Temp. Range
+300C to +1200C
Temp. Setting Accuracy
1C
Temp. Fluctuation
±1%C
Temp Sensor
Type N
Heating System
Electric Element
Interior Material
Ceramic Lined
Exterior Material
Stainless Steel
Rate of Ventilation
2-20 Exchanges per minute @800 deg. C
Options
Cable entry port, programmable controller, cantilever door, safety lift up door, volatile matter furnace
Safety Features
Over temperature alarm, temperature protection cut off, earth leakage breaker (ELB)
Power Supply
240V / 50Hz
Power
2400W / 10 AMPS
3600W / 15AMPS
4800 / 20AMPSW
Weight
22kg
32kg
39kg
