Description
The MTL MA3100 series offers cost effective, DIN-rail mounted, surge protection for applications described by IEC 61312 where the surge protector could carry a partial share of the lightning surge current. The MA3100 is a Class II instrument designed to fit in to the cascade philosophy together with Class I & Class III devices.

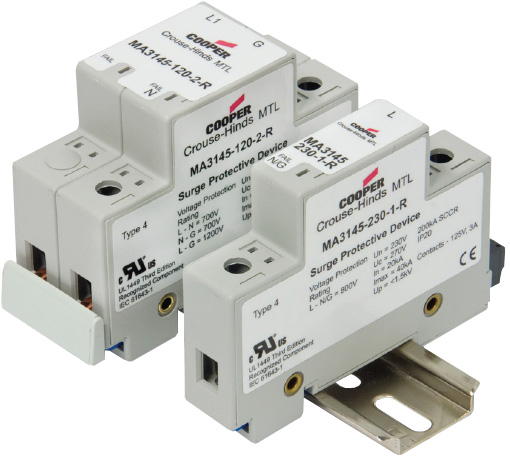

The MTL MA3100 is designed to work as both a standalone device and in cascade coordination with MTL’s Class I lightning arrester. They withstand surge currents up to 40,000 amps with 8/20μs waveform and are available in single width modules for maximum user flexibility, double width modules for all-mode protection on single phase systems and quad width modules for all-mode protection on three phase systems.
The MA3100 modules have remote monitoring capabilities as a standard feature. Voltage free, normally open, normally closed contacts can be used for a variety of monitoring tasks.All modules are DIN-rail mounted for ease of installation and have very small footprints therefore minimizing the space required. Each device is simply connected in parallel with the power.
Технические характеристики
Features
- Space saving design, DIN rail mounting
- Full range of AC mains power applications
- Coordinated surge protection to IEC 61312, rated according to IEC 61643
- UL1449 3rd Edition, Type 4 Recognized Component, VZCA2 & VZCA8, File E315539
- 200kA Short Circuit Current Rating
- 1, 2 or 4 pole versions available
