How does MT Eagle work?

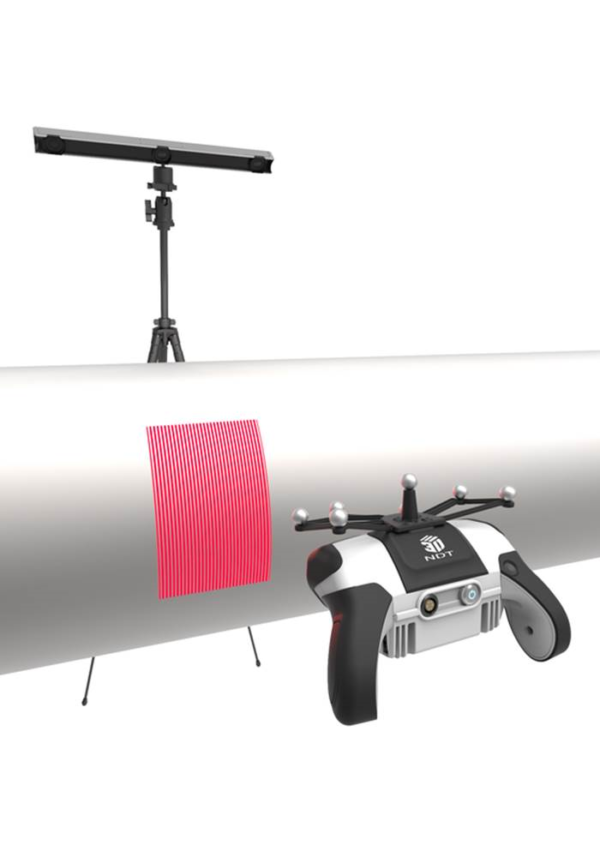

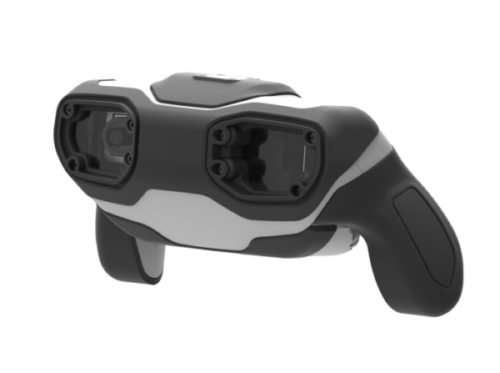

The MT Eagle tracking module enables automatic alignment of 3D data over large areas. The auto-align & merge is accomplished by using an optical tracking system and a target fastened on top of the 3DSL Rhino camera. The optical tracking system tracks the motion of the the 3DSL Rhino and places all 3D images in a world coordinate system. This results in near perfect alignment of images. Further processing of the images is done using proprietary Seikowave software to create a perfect 3D model. This entire process occurs in a matter of seconds. This enhancement will greatly benefit customers imaging large corrosion areas or large dents.
Product Benefits
- Makes large surface area assessment faster, easier, and more reliable.
- Saves time by not having to manually align and merge individual scans.
- Removes the need to draw or mark the pipe for manual alignment.
- Improves the ease of use for scanning.
- Removes concerns of glue residue that could interfere with the coating process.
- Removes concerns about imaging large areas that are extreme hot or cold or wet.
Applications
- Midstream transmission pipeline damage assessment
- ASME B31G, modified ASME B31G, RSTRENG
- ASME B31.8, ASME B31.4
- Export for finite element analysis (FEA)
- Chemical and Petro-chemical plant inspection
- API 579 compliant
- Aircraft inspection
- SRM compliant analysis
- Bridge inspection
- Metal loss on bolts and gusset plates
- Strain and deformation of gusset plates
- Weld inspection
- Rail Car Inspection
Technical Specifications
Hardware Model MT Eagle 01 (Slim 3U) Resolution .3 MP (640 X 480) Frame Rate 120 FPS Horizontal FOV 38°, 46°, 58° Interface USB 2.0 Latency 8.33 ms Software MT Eagle Software MT Eagle 1.0 Physical Specifications Dimensions 23”(L) x 2”(W) x 1.875”(H) Weight 2 lbs.
