| Increase to 100 Mpts/200 Mpts (4-ch/2-ch) |
| DSA Option: Includes 200 Mpts/CH Memory and EZJIT Complete |
Features:
- 4 GHz bandwidth (upgradable)
- 4 analog plus 16 digital channels
- Achieve up to 16 bits of vertical resolution with our advanced system architecture
- Capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory
- Get superior signal integrity with an average system ENOB of 8.1 bits at full bandwidth
- Gain increased usability with the multi-touch supported 15” capacitive touch screen and solid state drive for fast boot and reliability
- Improve your testing with a wide range of protocol, compliance, and analysis software
Specifications:
- 4 GHz
- 4+16 Channel
- 20 GS/s
- 100 MPts

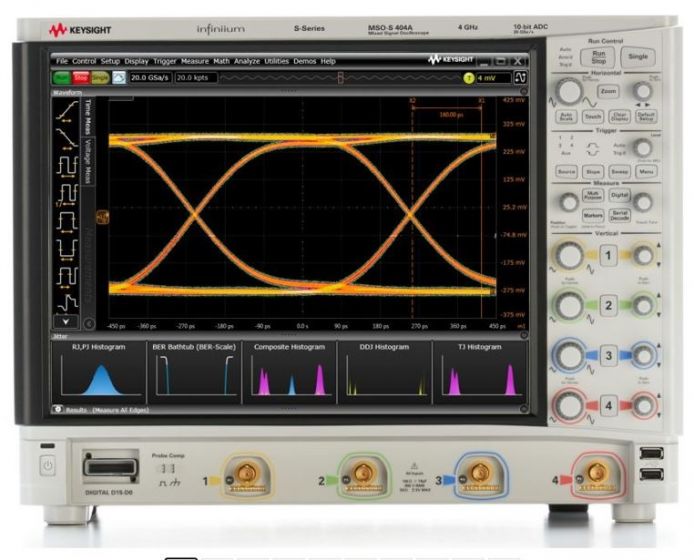

The MSOS404A is a 4 GHz, 4+16 Channel, 20 GS/s, 100 MPts mixed signal oscilloscope from Agilent Keysight HP.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4+16 |
| Frequency | 4 GHz |
| Record Length | 100 MPts |
| Sampling Rate | 20 GS/s |
