Additional Features:
- 2 GHz bandwidth (upgradable)
- 4 analog plus 16 digital channels
- Max Memory Depth: 800 Mpts (2 channels), 400 Mpts (4 channels)
- Max Sample Rate: 20 GSa/s (2 channels), 10 GSa/s (4 channels)
- Display Size: 15 inch
- ADC Bits: 10 bits
- Noise Floor: 610 µVrms at 50 mV/div
- Effective Number of Bits (ENOB): 7.5
- Typical Rise/Fall Time: 215 ps (10-90%), 155 ps (20-80%)
- Special Triggers: InfiniiScan Trigger, A-B HW Trigger
- Capture a longer signal trace with 20 GSa/s max sample rate and 50 Mpts/channel of standard memory
- Get superior signal integrity with system ENOB of 7.5 bits and 10-bit analog-to-digital converter (ADC)
- Gain increased usability with the multi-touch supported 15” capacitive touch screen and solid state drive for fast boot and reliability
- Improve your testing with a wide range of protocol, compliance, and analysis software

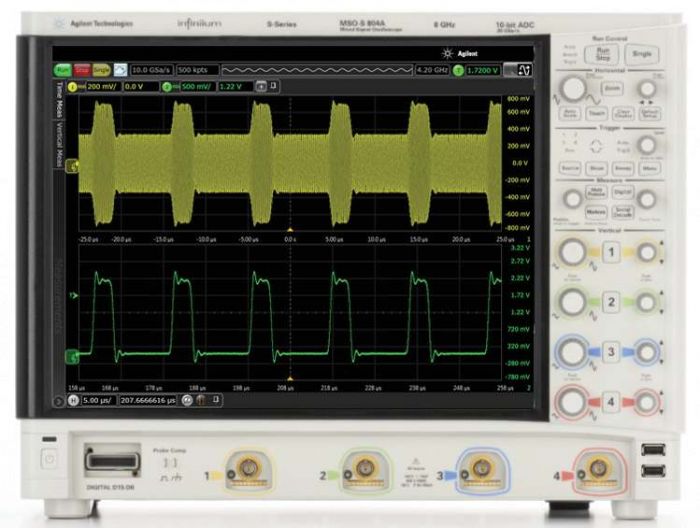

Infiniium S-Series oscilloscopes incorporate innovative technology designed to deliver superior measurements. The new 10-bit ADC and low-noise front-end technology work together to provide up to 8 GHz performance with the industry»s best signal integrity. They are in an advanced frame with a solid state drive for fast boot-up, capacitive 15” display for easy touch capability, and a high-powered motherboard for fast processing. It»s all compatible with a myriad of Agilent probes and Infiniium applications. Each model, equipped with a large 15” XGA capacitive touch screen, comes in a quiet package that is just 9” (23 cm) deep.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 4+16 |
| Frequency | 2 GHz |
| Record Length | 100 MPts |
| Sampling Rate | 20 GS/s |
