| 16 digital channels active logic probe (dedicated probe for MSO5000 series) |
| Digital oscilloscope demonstration plate |
| Record Length Upgrade to 200MPts |
| MIL-STD 1553 Serial Triggering and Analysis |
| Audio Serial Triggering and Analysis(I2S) |
| Automotive Serial Triggering and Analysis(CAN/LIN) |
| Dual Channel 25MHz Waveform Generator |
| Application Bundle,includes all serial protocol analysis, measurement, and app options |
| Computer Serial Triggering and Analysis(RS232/UART) |
| Embedded Serial Triggering and Analysis(I2C, SPI) |
| FlexRay serial bus trigger and analysis (FlexRay) |
| Front panel cover |
| Integrated Power Analysis |
| Rack Mounting Kit |
| Near-field probe |
| Power analysis phase difference correction jig |
| USB-GPIB interface converter |
Features:
- Analog bandwidth: 100 MHz, bandwidth upgrade option supported
- 4 analog channels (upgradable), standard 16 digital channels (LA probe required)
- Up to 8 GSa/s real-time sample rate
- Up to 200 Mpts memory depth (option)
- High waveform capture rate (over 500,000 wfm/s)
- Auto measurement of 41 waveform parameters, full-memory hardware measurement function
- A variety of serial protocol triggers and decodes
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
- Independent search, navigation keys, and event table
- Built-in advanced power analysis software (option)
- Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer

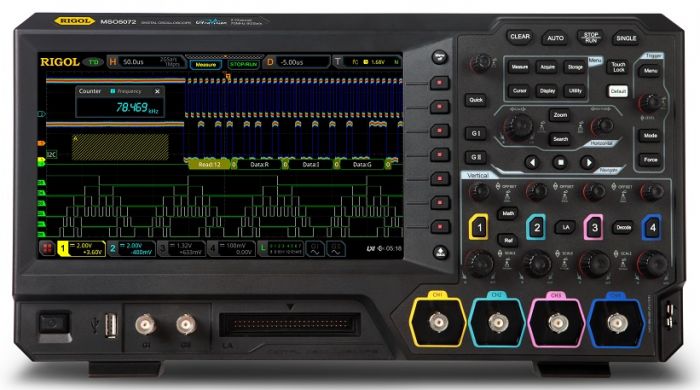

The MSO5104 digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
Технические характеристики
| Manufacturer | Rigol |
|---|---|
| Condition | New |
| Channels | 4+16 |
| Frequency | 100 MHz |
| Record Length | 100 MPts |
| Sampling Rate | 8 GS/s |
