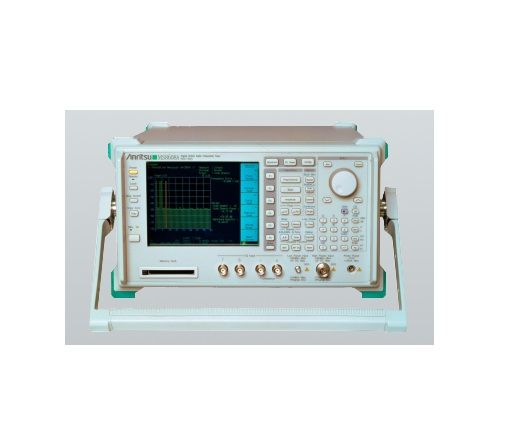

Features:
- Excellent performance for evaluating W-CDMA modulation signals. This makes it ideal for the development and manufacture of W-CDMA radio transmitters (base station and mobile). GSM/EDGE, HSDPA, WLAN/802.11, CDMA, 1xEVDO, and Pi/4DQPSK (PHS, PDC, IS-136) measurements are also supported.
- The built-in spectrum analyser (standard) covers a resolution bandwidth of up to 20 MHz. It is ideal for evaluating devices such as base station power amplifiers, due to its wide dynamic ranges of 68 dB (typical for 5 MHz offset) and 75 dB (typical for 10 MHz offset) for adjacent channel power (ACP) measurement (sweep method). A new average detection mode permits high-accuracy measurement of signal power with this noise-like spreading modulation.
- The built-in power meter (standard) integrates an amorphous power sensor for high-accuracy (+-0.4 dB) power measurements.
The spectrum analyzer has resolution bandwidths up to 20 MHz, meaning that it can readily support measurements of wide-band signals. The modulation analyzer realizes all Vector Signal Analysis (VSA) functions through high-speed DSP. The power sensor can perform highly accurate power measurements of ±0.4 dB by using an amorphous power sensor.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
