Features:
- Guaranteed performance to 43.5 GHz with Extended K™ ports
- High output power allows measurement of high attenuation devices
- Advanced time domain option provides tools for signal integrity analysis
- Wide dynamic range enables measurement of very low reflection artifacts
- Excellent corrected directivity minimizes measurement uncertainty
- SmartCal™ auto calibration unit reduces calibration and setup time
- Time domain with time gating option grants easier and faster fault identification
- Modern LAN interface for remote control is faster than GPIB
- A common GUI and SCPI interface within the ShockLine family
- Bias tee option simplifies test setups where the DUT needs DC biasing
- Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
- E-Band VNA
- Extended frequency range covering E-band and major parts of V band
- Fully assembled test system eliminates setup errors and increases reliability
- Tethered modules connect directly to the DUT increasing measurement stability
Applications:
Mobile
- UE – micro coaxial RF connectors
- UE – Antennas, switches, diplexers, UE Front End Modules (FEM)
- 5G network components
Automotive
- RF (FAKRA) connectors
- Driver assistance radar
General Purpose
- Passive Device Testing
- Connectors
- Cables
- Electromechanical
- Switches
- Attenuators
- Couplers
- Filters
- Isolators
- Circulators
- Phase shifters
- Radar connectors
- Near-field and far-field antenna measurements
System Integration Applications
- System calibration
- Path-loss characterization
- General s-parameter and time domain measurements
Simple Active Applications
- Amplifier characterization
Wireless Power Transfer Applications
- KQ product
- Maximum efficiency
Optical to Electrical, Electrical to Optical, and Optical to Optical Applications
- Photo receiver
- Laser modulator
- Optical transceiver
Specifications:
- 43.5 GHz

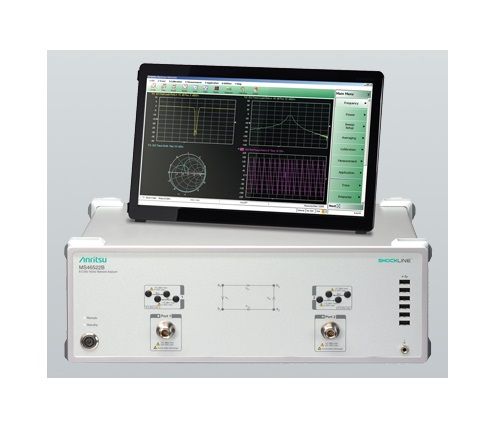

The ShockLine™ MS46322B is a 2-port performance vector network analyzers. Delivering an unprecedented level of value and performance, this series lowers the cost-of-test and speeds time-to-market in numerous testing applications up to 92 GHz, including: manufacturing and verifying mobile network equipment and devices for 5G mmWave applications, automotive cables, high-speed data interconnects, and system integration components.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 43.5 GHz |
