| Tracking Generator |
Additional Features:
- Frequency range: 9 kHz to 7.1 GHz
- Measure: Occupied Bandwidth, Channel Power, ACPR, C/I
- Interference Analyzer: Spectrogram, Signal Strength, RSSI
- Dynamic Range: >, 101 dB in 1 Hz RBW
- DANL: –163 dBm in 1 Hz RBW
- Phase Noise: –95 dBc/Hz @ 10 kHz offset at 1 GHz
- Frequency Accuracy: <, ± 25 ppb with GPS On
- 1 Hz to 3 MHz Resolution Bandwidth (RBW)
- Traces: Normal, Max Hold, Min Hold, Average, # of Averages
- Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
- Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
- Limit Lines: up to 40 segments with one-button envelope creation
- Trace Save-on-Event: crossing limit line or sweep complete
Capabilities and Functional Highlights
- LTE, GSM/EDGE
- W-CDMA/HSDPA
- TD-SCDMA/HSDPA
- CDMA, EV-DO
- WiMAX — Fixed, Mobile
- DVB-T/H, SFN, BER
- ISDB-T, SFN
- AM/FM/SSB Demodulator
- Tracking Generator
- Gated Sweep
- High Accuracy Power Meter
- 4, 6, 8, 18, 26 GHz USB Sensors
- Channel Scanner
- 8.4″ Display
- Internal Preamplifier standard
- <, 5 minute warm-up time
- 2.3 hour battery operation time
- Ethernet/USB Data Transfer
- MST Remote Access Tool
- GPS tagging of stored traces

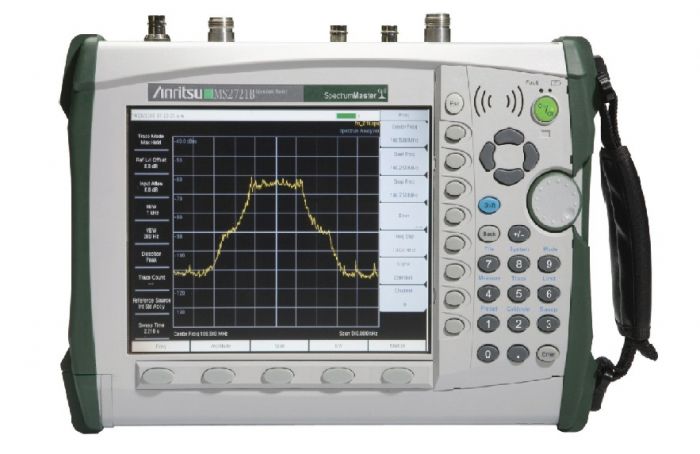

The Anritsu MS2721B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, WiMAX, and wireless medical patient monitoring systems. This high performance handheld spectrum analyzer is ideal for AM and FM broadcast proofing because the wide dynamic range and low phase noise make NRSC measurements on analog and IBOC signals easy with no need for an external carrier notch filter. Weighing in at less than 7 pounds, it is equally at home on the engineering bench and in the field.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 7.1 GHz |
