Features:
- Spectrum Analyzer: 9 kHz – 6 GHz
- Interference Analyzer with Interference Mapping
- High Accuracy Power Meter, 2-port Transmission Measurements
- Coverage Mapping, Channel Scanner, GPS, AM/FM/PM Analyzer
- PIM Hunting
- 3GPP, 3GPP2, WiMAX, signal analyzers
- Tracking Generator: 500 kHz – 4 GHz
- Digital TV ISDB-T, DVB-T/H analyzers
- CPRI RF Measurements
- OBSAI RF Measurements
- Field-proven design: Three-hour battery life, rugged, compact, lightweight, daylight viewable display
- Intuitive menu-driven touchscreen user interface
- PIM Alert (a downloadable easyTest™ script)
- Standard three-year warranty (battery one-year warranty)
Applications:
- Spectrum monitoring
- Transmitter Verification: occupied bandwidth, channel power, adjacent channel power ratio
- Interference Analysis of cellular system, land mobile radio systems, Wi-Fi
- Signal Strength Mapping
- Field analysis of 2G/3G/4G and broadcast signals
- Field Strength Measurements
- PIM Hunting
- Coverage verification, network optimization
- Tracking Generator
- EMF Measurement System
- CPRI RF Measurements
- OBSAI RF Measurements
Specifications:
- 6 GHz

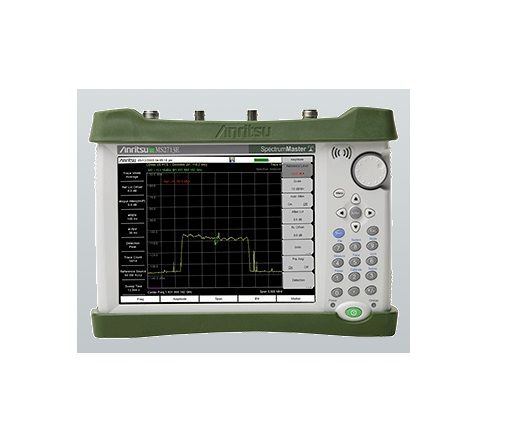

Regulatory requirements are growing. You»re under increasing pressure to cut costs. And improving system uptime is always a top priority. The MS2713E Spectrum Master helps you do all of this and more. Whether you are performing complex interference analysis or assessing signal quality, the MS2713E Spectrum Master delivers the ease of use, rich functionality, and best-in-class price/performance you»ve come to expect from Anritsu.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 6 GHz |
