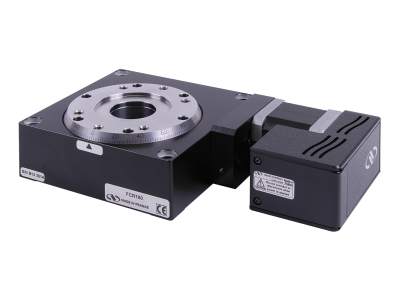

The FCR100 rotation stage combines a fully integrated stepper motor controller (iPP technology) and precision rotation stage in a small footprint. Similar to the CONEX series for DC motor, the FCR100 comes fully pre-configured and enables true out-of-box control. The iPP technology used in the FC series completely eliminates controller or driver set up, allowing users to simply connect USB communication, plug in the power supply and start the motion GUI. Power supply and USB cable to be ordered separately. Features of the FCR100 includes: robust construction of crossed roller bearing for high position accuracy and the stepper motor directly attached to the worm screw providing high output torque. Up to 4 FC series units can be daisy-chained and controlled by a single GUI, via USB or direct RS-422 interface.
Технические характеристики
- Angular Range 360°
- Maximum Speed 20°/s
- Minimum Incremental Motion 0.25 mdeg
- Maximum Torque 0.5 N·m
- Centered Load Capacity 300 N
- Uni-directional Repeatability, Typical ±0.50 mdeg
- Uni-directional Repeatability, Guaranteed ±1.0 mdeg
- Bi-directional Repeatability, Typical ±2.5 mdeg
- Bi-directional Repeatability, Guaranteed ±6.0 mdeg
- Accuracy, Typical ±10 mdeg
- Accuracy, Guaranteed ±20 mdeg
- Wobble, Typical ±12 rad
- Wobble, Guaranteed ±25 rad
- Eccentricity, Guaranteed ±3.0 m
- Transversal Compliance 20 rad/N·m
- Origin Optical, centered
- Origin Repeatability ±2.5 mdeg
- MTBF 20,000 h (25% load, 10% duty cycle)
- Cable Length 5 m
- Aperture Diameter 30 mm
- Computer Interfaces RS422 and USB
- Weight 2.25 kg
- Compliance RoHS 3, CE
