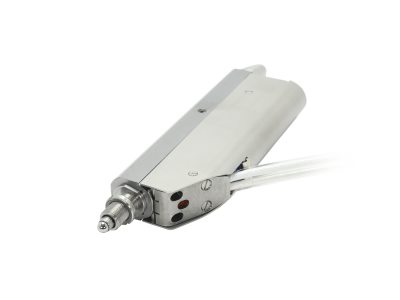

The Vacuum Compatible LTAHSPPV6 High Speed Motorized Actuator is optimized for high-speed applications and provides a 50 mm travel range. LTA actuators are designed to fit into other vacuum compatible manual stages and opto-mechanical components as direct replacements for manual micrometers Featuring a space-saving design with the motor and lead screw mounted side-by-side, the LTAHSPPV6 is ideal for space constrained setups, common to vacuum applications. This design not only reduces the actuator length by 50%, but also minimizes the unwanted effects of long cantilever loads on micro-positioning equipment. Precision motion is accomplished through a miniature stepper motor with optimized output torque. This allows for faster motion and high load capacity.
Note: The connector supplied with the actuator is not vacuum compatible due to various feed-through configurations and customer preferences. Please contact Newport for vacuum compatible connector options
Технические характеристики
- Travel Range 50 mm
- Maximum Speed 0.5 mm/s
- Minimum Incremental Motion 0.08 m
- Closed Loop Minimum Incremental Motion 0.30 m
- Push Force 40 N
- Pull Force 40 N
- Accuracy, Typical ±,2.2 m
- Accuracy, Guaranteed ±,5.0 m
- Bi-directional Repeatability, Typical ±,0.30 m
- Bi-directional Repeatability, Guaranteed ±,1.0 m
- Uni-directional Repeatability, Typical ±,0.10 m
- Uni-directional Repeatability, Guaranteed ±,0.25 m
- Origin Repeatability ±,2 m
- Cable Length 1.5 m
- Vacuum Compatibility 10-6 Torr
- Power Consumption 6 W
- Weight 0.35 kg
- MTBF 10,000 h (25% load, 30% Duty cycle)
- Maximum Power Consumption 10 W
- Compliance RoHS 3, CE
