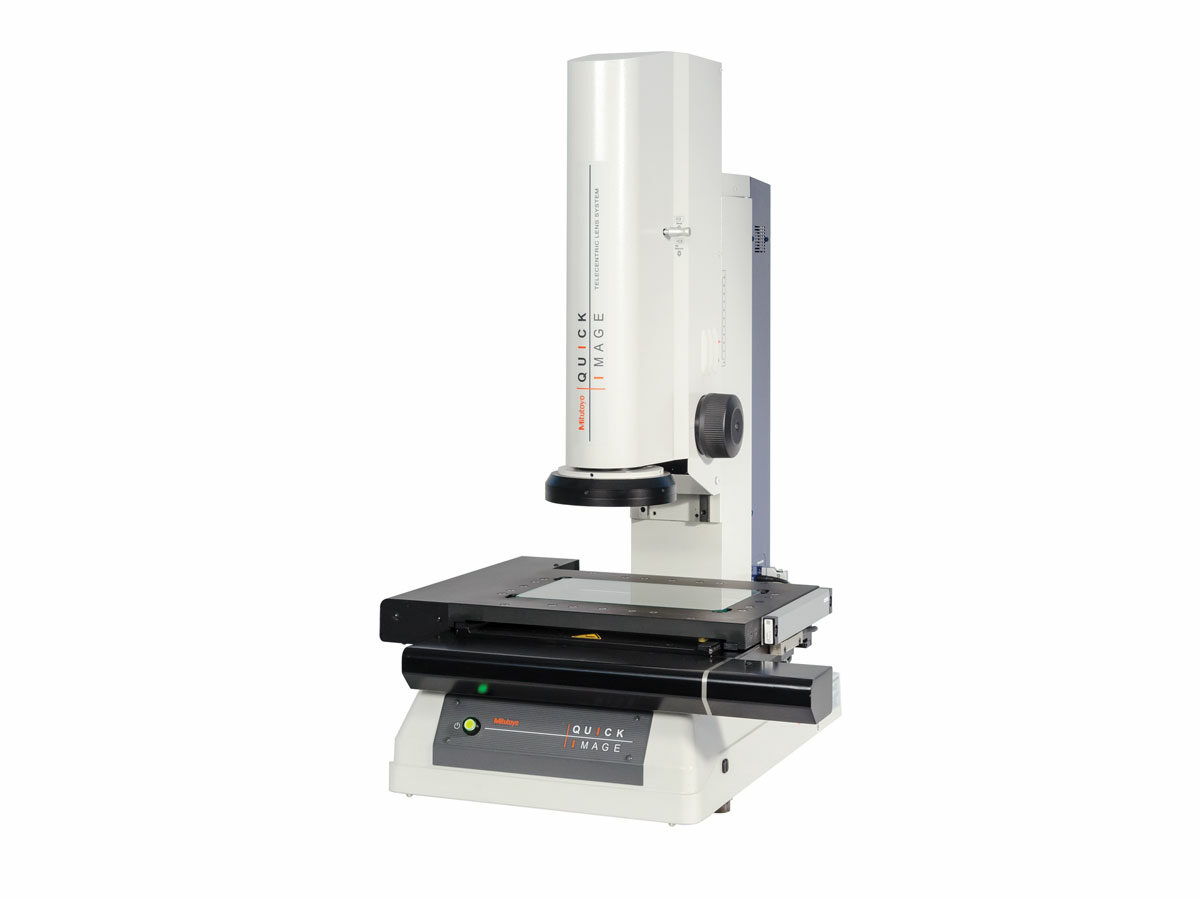

The Quick Image series Vision Measuring System is a compact system with the highest level of measuring accuracy within the screen in its class. Sub-pixel processing enables high-accuracy edge detection even with a wide view field as well as stable, accurate measurements on large workpieces. Its compact design and high-quality components makes the QI Vision system ideal for integration on the shop floor or in the lab.
- Double-telecentric optics enable efficient measurements and eliminates human error with a long focal depth and wide field of view
- An extra-long 90mm working distance ensures you can focus without worrying about collisions even with stepped workpieces
- One-click tool offers simple execution of multiple measurements
- 3 mega-pixel color CMOS camera
- Four quadrant LED ring light
- Orientation of part is automatically detected
- Motorized stage
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Workpiece Max Load: | Mass (incl. stand and controller): | Dimensions: | |
|---|
| 361-860A | QI-C2010D | 8″ / 200mm | 4″ / 100mm | 22lbs / 10kg | 159lbs / 72kgs | 33 x 31 x 39″ (830 x 800 x 1000mm) |
| 361-861A | QI-C2017D | 8″ / 200mm | 6.7″ / 170mm | 44lbs / 20kg | 337lbs / 153kgs | 40 x 37 x 44″ (1020 x 930 x 1120mm) |
| 361-862A | QI-C3017D | 12″ / 300mm | 6.7″ / 170mm | 44lbs / 20kg | 355lbs / 161kgs | 40 x 37 x 44″ (1020 x 930 x 1120mm) |
Технические характеристики
| Technology: | Motorized VMM |
|---|
| Scale Resolution: | 0.0000039370′ / 0.00010mm |
|---|
| Environment: | 68°F
20°C |
|---|
| Camera Type: | 3MP Color CMOS |
|---|
| Field of View: | 1.2598 x 0.9449′ / 32 x 24mm |
|---|
| Zoom Type: | Digital |
|---|
| Magnification: | 7.6x |
|---|
| Depth of Field: | ±600 — ±11,000µm |
|---|
| Working Distance: | 4′ / 90mm |
|---|
| Touch Trigger Probe: | No |
|---|
| Color Lighting: | No |
|---|
| Laser Tracking Autofocus (TAF): | No |
|---|
| Vibration Stand: | No |
|---|
| Range Z-Axis: | 4′ / 100mm |
|---|
