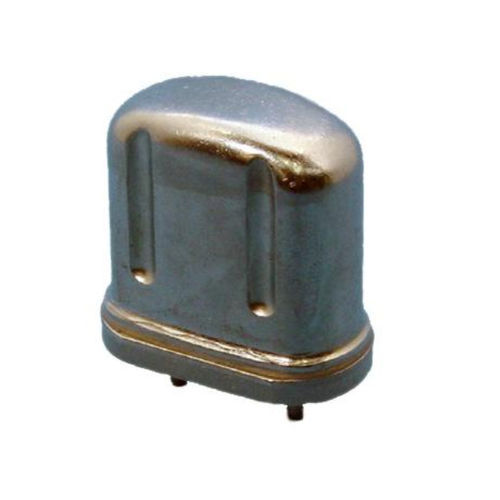

KLIXON® 34HM hermetic motor protector is designed to protect 3-phase refrigeration and air conditioning compressor motors from excessive winding temperature, however, applications may be made to any WYE wound 3-phase motors where environmental conditions require a hermetic seal. • Protect WYE (Star) wound 3-phase motors from 1 to 6HP. Used in refrigeration compressors, submersible pumps and other restrictive environments. • In-line protection in a small, rugged, welded construction. Low profile shape allows for close coupling to motor windings. • Hermetic reliability designed for leakage rates less than 1 x 10-9 cc per second of air with 1 atmosphere pressure differential. • Klixon® snap-action discs assure positive make and break action and controlled temperature differential. • Designed for low and high side pressure applications.
Технические характеристики
CharacteristicsApplicationsfor motor protectionTemperature
Max.: 175 °C (347 °F)
Min.: 95 °C (203 °F)
