last updated : 2018/12/31
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| KWATPUMCSL01 | KIT, MOTORPUMP, sludge, diaphragm, diesel, 4′, 25m3/h at 10m | CH 8 510,95 | 380kg | 3,15m³ | Add | |
| Dangerous : DGR-UN3528 | ||||||
| KWATPUMCSL02 | KIT, MOTOR PUMP, sludge, diaphragm, diesel, 3′, 15m3/h a 10m | CH 6 654,69 | 183kg | 0,8736m³ | Add | |
| Dangerous : DGR-UN3528 | ||||||
General information
Self-priming diaphragm sludge-pump, 4 inch/5kW with Lombardini 6L D325 engine
or 3 inch/1.5 kW with Lombardini 15L D225 engine.
- Specify the type of engine in your order if other than the Lombardini.
Primarily used for emptying latrines.
- 4′ or 3′ suction hoses will pass through pit-latrine squatting plate aperture
- Also suitable for filling small waste containers (i.e., oil drums).
Continuous dry running. Dry self-priming from 7m.

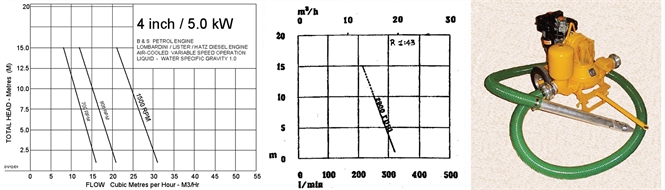

Specifications
Standard engines: | Lombardini 6L D325 / 4.2 kW at 3000rpm for 4′ pump Lombardini 15L D225 / kW at 3000rpm for 3′ pump |
Alternative engines: | Lister AC1 / 4.5kW at 3000rpm for 4′ pump Yanmar L100 / 4.5kW at 3000rpm for 4′ pump Hatz 1B30-1 / 4.5kW at 3600rpm. for 4′ pump Hatz LB20-1, 3600 rpm for 3′ pump |
Engine specifications: | 4-stroke diesel. single cylinder, direct injection, not turbo charged, air-cooled, variable speed control, recoil manual start, dry type air filter, exhaust silencer, oil and fuel filters, oil level shutdown, 4-litre fuel tank (provides 5 hours running time). |
Pump specifications: | aluminium, simplex self-priming diaphragm pump, cast iron (wetted parts), suction and delivery-flap valves, suction air chamber, 4″ screwed BSP suction and discharge connections, neoprene diaphragm, 60mm-max solids handling |
Other features: | Engine close-coupled with pump on skid base with anti-vibration mounts, 2-wheel site trolley. |
Content list
Description | Qty |
KIT, MOTOR PUMP, sludge, diaphragm, diesel, 3′, 15m3/h a 10m | |
Libellula 1-3” pump coupled with diesel engine, on 2 wheel trailer | 1 |
COUPLING, half symmetrical, ‘Storz’, threaded male | 2 |
JH Suction lance | 1 |
6m of 3” reinforced suction spiraled hose fitted with 2 Storz coupling and band clips | 1 |
20m of 3” reinforced delivery flat hose fitted with 2 Storz coupling and band clips | 1 |
5l engine oil, diesel engine | 1 |
20l steel jerrycan | 1 |
Funnel, plastic, with built in filter | 1 |
Maintenance Tool Kit including: | 1 |
Start up Lombardini spare parts kit including: | |
Engine oil sump plug washer | 1 |
Oil filter element | 1 |
Fuel filter element | 1 |
Engine rocker box gasket | 1 |
Engine injection washer | 1 |
Engine leak-off pipe washer | 1 |
Or Start up Lister spare parts kit | |
Or Start up Hatz spare parts kit | |
Or Start up Yanmar spare parts kit | |
Engine operator manual in English and French | 1 |
Pump operator manual in English and French | 1 |
Wooden box with Red Cross /Crescent logo painted in red on white background. | 1 |
KIT, MOTORPUMP, sludge, diaphragm, diesel, 4′, 25m3/h at 10m | |
Pelican DLO 100 pump coupled with diesel engine, on 2 wheel trailer | 1 |
COUPLING, half symmetrical, ‘Storz’, threaded male | 2 |
JH Suction lance | 1 |
6m of 4” reinforced suction spiraled hose fitted with 2 Storz coupling and band clips | 1 |
20m of 4” reinforced delivery flat hose fitted with 2 Storz coupling and band clips | 1 |
5l engine oil, diesel engine | 1 |
20l steel jerrycan | 1 |
Funnel, plastic, with built in filter | 1 |
Maintenance Tool Kit including: | 1 |
Start up Lombardini spare parts kit including: | |
Engine oil sump plug washer | 1 |
Oil filter element | 1 |
Fuel filter element | 1 |
Engine rocker box gasket | 1 |
Engine injection washer | 1 |
Engine leak-off pipe washer | 1 |
Or Start up Lister spare parts kit | |
Or Start up Hatz spare parts kit | |
Or Start up Yanmar spare parts kit | |
Engine operator manual in English and French | 1 |
Pump operator manual in English and French | 1 |
Wooden box with Red Cross /Crescent logo painted in red on white background. | 1 |
