last updated : 2018/12/31
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| KWATPUMCRW02 | KIT, MOTOR PUMP, raw water, diesel, 2′, 24m3/h at 20m | CH 3 615,86 | 131kg | 0,67m³ | Add | |
| Dangerous : DGR-UN3528 | ||||||

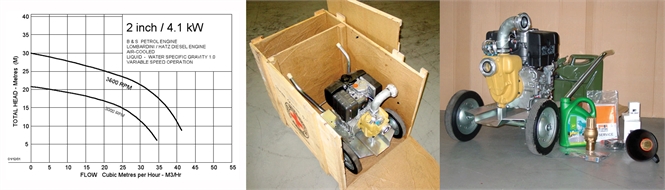

General information
Self-priming diesel pump 2 inch /5 kW with Lombardini 15L D350 engine.
- Where an engine other than the Lombardini is required, specify which one in the order (refer to alternative in the specifications). To maintain maximum standardization, use of the same brand and engine type is highly recommended within the same location or region.
The kit includes all the required items to run a pump including all the connectors to fit 2″ or 3″ pipe-work using Storz or thread couplings. The engine oil provided covers start-up needs plus one oil change. The spare parts set is meant for the initial phase only.
The pump accepts raw water with limited amounts of very small solids. It can be used for raw water, clear water or chlorinated water. In exceptional circumstances, it can be used for drainage. It cannot be used for sewage or sludge pumping.
Pumps driven by a petrol engine are possible. Diesel is recommended.
Specifications
Standard engine: | Lombardini 15L D350 (Diesel)/5kW at 3600rpm |
Alternative engines: | Lister AC1 (Diesel)/4.5kW at 3000rpm Hatz 1B30-1 (Diesel)/4.5kW at 3600rpm |
Engine Specifications: | 4-stroke diesel, single cylinder, direct injection, not turbo charged, air-cooled, variable speed control, recoil manual start, dry air filter, exhaust silencer, oil and fuel filters, low oil-level security cut off, 4-litre fuel tank (provides 5 hours running time) |
Alternative petrol engines: | Honda GX160 (Petrol)/ 4kW at 3600rpm Briggs and Stratton Vanguard 91202 (Petrol)/ 4kW at 3600rpm |
Pump features: | cast-iron centrifugal self-priming pump, integral non-return valve, renewable rubber-coated wear plate, cast-iron high-efficiency clog-resistant impeller, 14mm-max solids handling, carbon/ceramic faced mechanical seal, detachable discharge bend |
Other features: | Engine close-coupled with pump. Mounted on prefabricated steel base with 2-wheeled site trolley. |
Packaging: | 1 wooden box, 1.17 x 0.78 x 0.96m, with ISO pallet base. One side of the packaging box is designed as a detachable ramp for loading and offloading the pump. Inside the box, a divider protects the components. Inside of box is lined with a tar-coated paper for water protection. |
KWATPUMCRW02 Content list — Export content list (excel file)
| Code | Description | Qty |
|---|---|---|
| APACWBOX1108 | BOX, 20mm plywood, 1.1×0.7×0.8m, pallet base + ramp | 1 |
| EHDWBACLH050 | BAND CLIP, for hose pipe, high torque, 50-70mm | 2 |
| EHDWBACLH077 | BAND CLIP, for hose pipe, high torque, 77-95mm | 2 |
| TVEAFUNNP200 | FUNNEL, diam. 200 mm, bended + metallic filter | 1 |
| TVEAJCANM20L | JERRYCAN, 20 l, metallic certified UN | 1 |
| TVECLUBR501 | OIL, ENGINE, diesel/petrol, 15W40, 5L plastic container | 1 |
| WNEASTNR3 | STRAINER+check valve, 3′, thread fem. | 1 |
| WNECBRCA2M2T | COUPLING, BRASS, ADAPTOR, thread male 2′ to hose tail 2′ | 1 |
| WNECBRCA3M3T | COUPLING, BRASS, ADAPTOR, thread. male 3′ to hosetail 3′ | 1 |
| WNECGABB2F2F | COUPLING, GALVA, BEND, 2′, 90deg, thr fem/fem, large radius | 1 |
| WNECGACR3M2F | COUPLING, GALVA, REDUCER, 3′-2′, thred male/fem. | 1 |
| WNECGANN2M2M | COUPLING, GALVA, NIPPLE, 2′, threaded male/male | 2 |
| WNECSTCC2SM | COUPLING, ‘Storz’, 2′, threaded male | 2 |
| WNECSTCR3-2 | COUPLING, ‘Storz’, REDUCER, 3′-2′ | 2 |
| WNECSTHO2-3 | HOOK SPANNER, for 2′ and 3′ Storz couplings | 1 |
| WNEVBRGA2FF | VALVE, BRASS, GATE, 2′, threaded fem/fem | 1 |
| WPUCESDR001 | PUMP, END-SUCTION, diesel, Self-Priming, 2’/4.5kW | 1 |
| WSPPLOMB1961 | AIR FILTER, element, Lombardini 15LD350, ref SL1961 | 1 |
| WSPPLOMB3647 | FUEL FILTER, element, Lombardini 15LD/3LD, ref SK3647 | 1 |
| WSPPLOMB5155 | OIL FILTER, element, Lombardini 15LD350, ref SO5155 | 1 |
| WSPPLOMB6101 | VALVE, rubber, Quiete pump, ref:6101 | 1 |
| WSPPLOMB6339 | MECHANICAL SEAL, Quiete/Paio pumps, ref:6339+6353 | 1 |
| WSPPLOMBGUQU | USER + SPARE PART GUIDE, Lombardini Quiete | 1 |
