The MF-UC series 2-axis measuring microscope gives operators brightfield and darkfield observation and a wide field of view. The microscope»s ultra-long working distance provides the ability to observe larger objects with detail for added flexibility. The MF-U offers microscopy methods such as polarization and differential interference contrast.
• Observation with a clear and flareless erect image and a wide field of view
• Proven high-NA objectives from the FS optical system (long-working distance type)
• Integration of metallurgical and measurement microscope functions provides high-resolution observation and high-accuracy measurement solution
• Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (required)
• Variable aperture diaphragm (reflected/ transmitted) allows for contrast adjustment
• Variety of standardized stages in sizes up to 400 × 200 mm
• Quick-release mechanism useful for moving the stage quickly when measuring workpieces that are large in size or quantity
• High-magnification observation up to 2000X
• Dedicated camera port for seamless integration of Mitutoyo Vision unit or third party c-mount camera
• 4 Position motorized or manual turret is available
| Order No.: | Product Image: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Accuracy: | XY Stage Top Size: | Effective glass size: | Swivel Function: | Workpiece Max Load: | |
|---|
| 176-881-10 | — | MF-UC1010D | 4″ / 100mm | 4″ / 100mm | 6″ / 150mm | XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7153 | 11 x 11″ / 280 x 280mm | 7 x 7″ / 280 x 280mm | — | 22lbs / 10kg |
| 176-882-10 | — | MF-UC2010D | 8″ / 200mm | 4″ / 100mm | 6″ / 150mm | XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7154 | 14x 11″ / 350 x 280mm | 10 x 6″ / 350 x 280mm | — | 22lbs / 10kg |
| 176-883-10 | — | MF-UC2017D | 8″ / 200mm | 7″ / 170mm | 8.7″ / 220mm | XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7155 | 16.1 x 13.4″ / 410 x 342mm | 10.6 x 9.4″ / 410 x 342mm | + / — 5 degree (left) | 44lbs / 20kg |
| 176-884-10 | — | MF-UC3017D | 12″ / 300mm | 7″ / 170mm | 8.7″ / 220mm | XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7156 | 20.07 x 13.4″ / 510 x 342mm | 14.5 x 9.4″ / 510 x 342mm | + / — 5 degree (left) | 44lbs / 20kg |

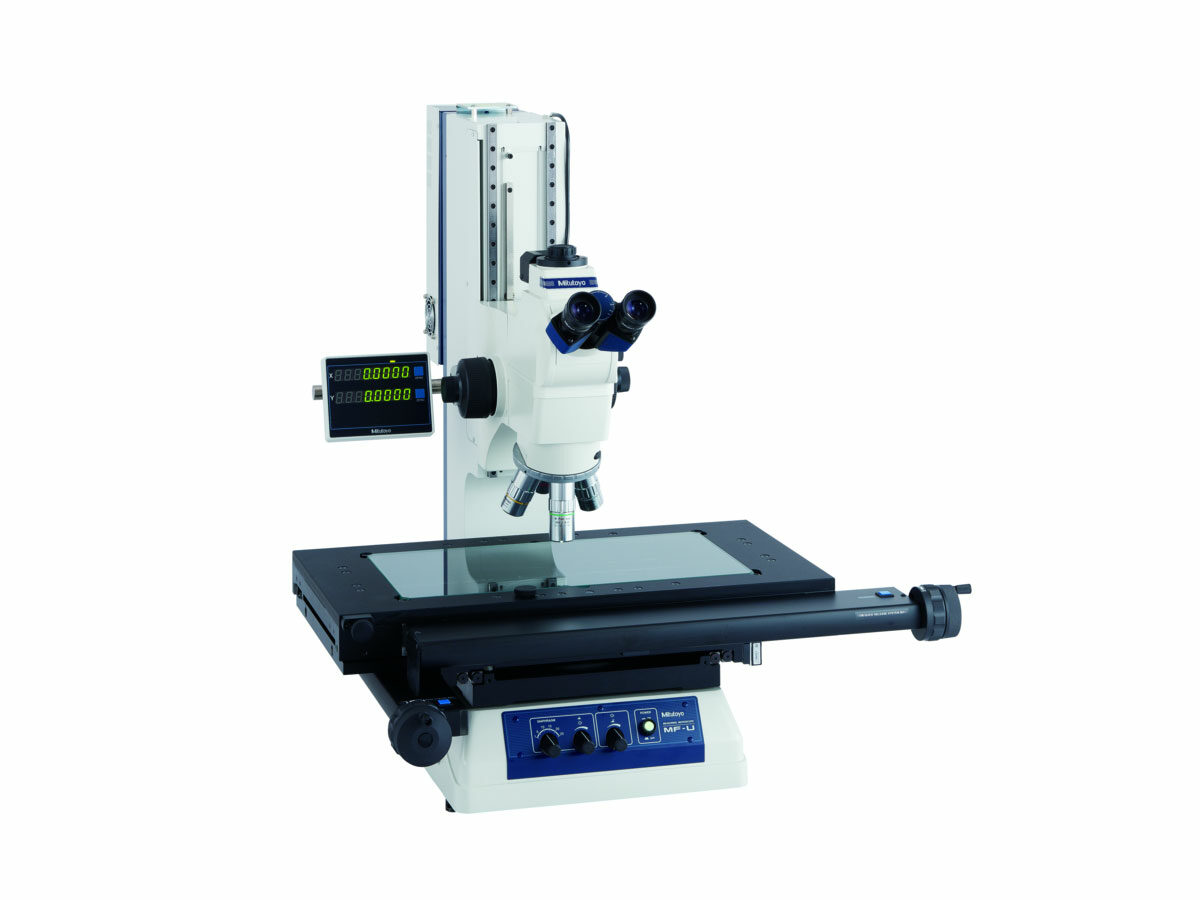

| 176-885-10 | — | MF-UC4020D | 16″ / 400mm | 8″ / 200mm | 8.7″ / 220mm | XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7157 | 24 x 13.4″ / 610 x 342mm | 17.3 x 9.4″ / 610 x 342mm | + / — 3 degree (left) | 33lbs / 15kg |
| 176-881-10 |
| 176-882-10 |
| 176-883-10 |
| 176-884-10 |
| 176-885-10 |
Технические характеристики
| Focusing Method: | Manual focusing ( coarse focusing: 30mm/rev, Fine Focusing: 0.2mm/rev) |
|---|
| Measuring Method: | Linear encoder (2-axis model: X/Y axis, 3-axis model: X/Y/Z axis |
|---|
| Floating Function: | X and Y axes with Quick-release mechanism |
|---|
| Resolution: | .0001/.00005/.00001 (.001mm/.0005mm/.0001mm) |
|---|
