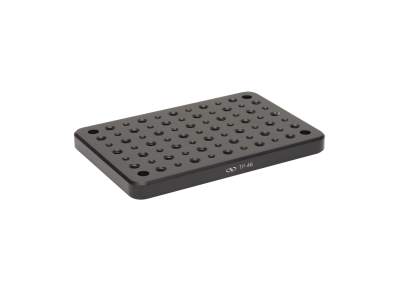

The TP-46 is a 4 x 6 inch threaded plate featuring a double-density pattern of 8-32 and 1/4-20 threaded mounting holes. Use these plates to combine several optical mounts together on to a single stable platform. Each of these plates also have counterbored thru holes which can be used for stand-off posts and pedestals. These threaded plates are made from 1/2-in. (12.7-mm) thick aluminum alloy plate and finished with a durable type 2 black anodize.
Технические характеристики
- Type Double-Density Mounting Holes
- Height 12.7 mm
- Length 4 in.
- Width 6 in.
- Dimensions 101.6 x 152.4 x 12.7 mm
- Thread Type 8-32 and 1/4-20
- Thickness 0.5 in.
- Material Aluminum
- Use Mounting Plate
- Surface Flatness ±0.02 in.
- Mounting Holes 8-32 and 1/4-20
