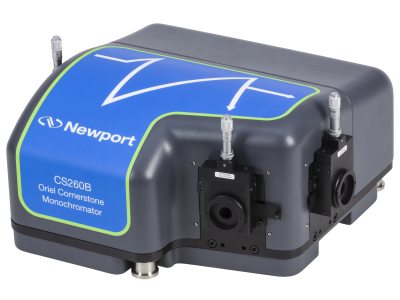

The CS260B-1-MC-D is a high performance, economical, and user-friendly monochromator. It has been completely revamped and refreshed from the legacy CS260-1-MC models. Based on the same optical design as its predecessor, this is a replacement with updated looks and upgraded functionality.
Технические характеристики
- Blaze Wavelength 250 nm, 500 nm, 750 nm, 1000 nm
- Communication Interfaces USB 2.0 and RS232
- Focal Length 260 mm
- Line Density 1200 lines/mm
- Number of Ports 3
- Slits Micrometer Driven
- Wavelength Range 250-1300 nm
- Wavelength Accuracy ±0.5 nm
- Wavelength Precision ±0.075 nm
- Stray Light 0.01%
- F/# F/3.9
- Flange Series Size 1.5 inch
- Number of Gratings Supported 4
- Wavelength Selection Method Precision Motor
- Weight 21 lbs (9.5 kg)
- Power Requirements 100-240 VAC, 47-63 Hz
- Grating Type Ruled
- Reciprocal Dispersion 3.56 nm/mm, 3.43 nm/mm, 3.22nm/mm, 2.98 nm/mm
