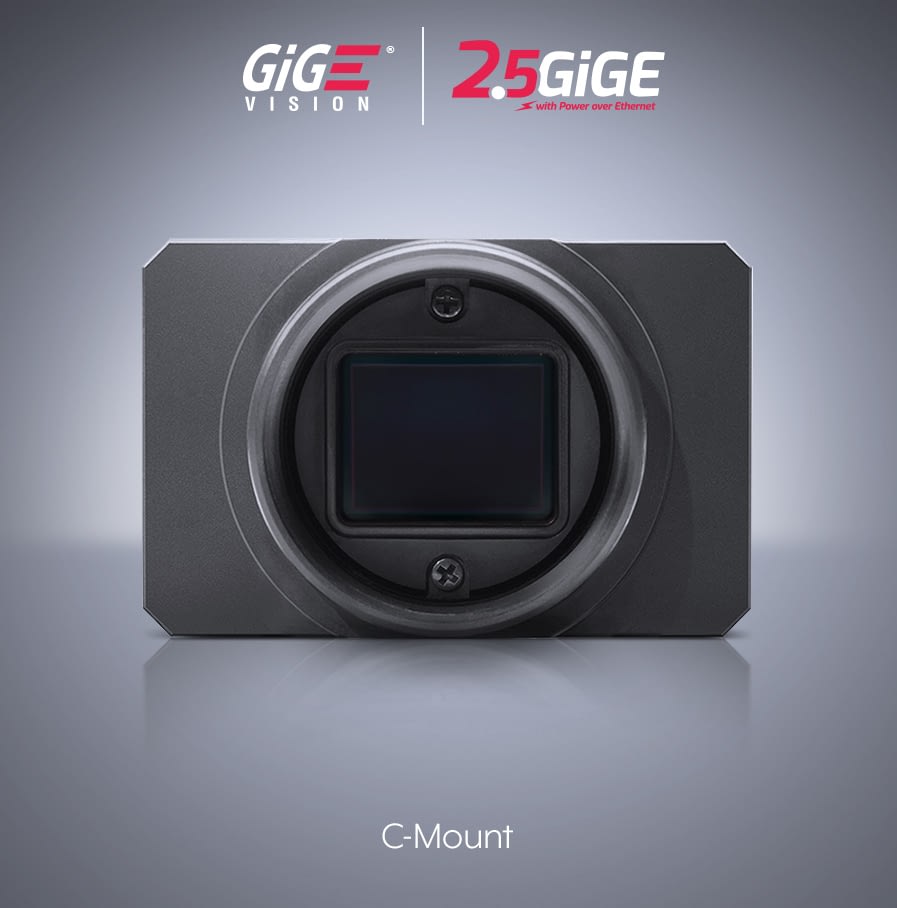

Модель Triton2 20 МП

Sensor
Sony IMX183 CMOS

Resolution
20 MP, 5472 x 3648 px

Frame Rate
9 FPS

Model SKUs	Chroma	Lens Mount	2.5GBASE-T GigE Vision Connector	Included Accessory
TRT200S-CC	Color	C-mount	M12	M8 GPIO IP67 Cap
TRT200S-MC	Mono	C-mount	M12	M8 GPIO IP67 Cap

Технические характеристики

Sensor Properties
Sensor Model	Sony IMX183 CMOS
Shutter Type	Rolling with global reset
Sensor Size	15.86 mm (Type 1″)
Resolution	5472 x 3648 px, 20 MP
Pixel Size	2.4 µm (H) x 2.4 µm (V)
Framerate*	9 FPS @ 20 MP

Physical Properties
Dimensions	44 x 29 x 45.3 mm
Lens Mount	C-Mount
Weight	90 g
Ingress Protection	IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)

Interface and Power Information
Digital Interface	2.5GBASE-T / 1000BASE-T M12 (8-Pin X-Coded), PoE
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption	5W via PoE, 4.5W when powered externally

Imaging Properties
Image Buffer	128 MB
Image Processing	Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats	Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes	Horizontal and vertical binning, ROI, vertical flip
ADC	12 bit
Gain Range	0 dB to 48 dB analog and digital
Exposure Time	359 μs to 10 s

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity	DIN EN 61000-6-2
Warranty	3 year

Lens Manufacturer Part #	Lens Description	5.0MP TRT051S	8.1MP TRT081S	12.3MP TRT124S	16.2MP TRT162S	20.0MP TRT200S	20.4MP TRT204S	24.5MP TRT245S
Edmund Optics UC #33-300	C-Mt 1/2″ 4mm f/1.8
Edmund Optics UC #33-301	C-Mt 1/2″ 6mm f/1.85
Edmund Optics UC #33-307	C-Mt 1/2″ 8mm f/1.8
Edmund Optics UC #33-303	C-Mt 1/1.8″ 12mm f/1.8	Vignette
Edmund Optics UC #33-304	C-Mt 1/1.8″ 16mm f/1.8	Vignette
Edmund Optics UC #33-305	C-Mt 1/1.8″ 25mm f/1.85	Vignette
Edmund Optics C #67-709	C-Mt 1/1.8′ 6mm, f1.4	Vignette
Edmund Optics C #58-000	C-Mt 2/3′ 8.5mm, f/1.3	Good	Good
Edmund Optics C #58-001	C-Mt 2/3′ 12mm, f/1.8	Good	Good
Edmund Optics C #59-870	C-Mt 2/3′ 16mm, f/1.6	Good	Good
Edmund Optics C #59-871	C-Mt 2/3′ 25mm, f/1.4	Good	Good
Edmund Optics C #59-872	C-Mt 2/3′ 35mm, f/1.65	Good	Good
Edmund Optics C #59-873	C-Mt 2/3′ 50mm, f/2	Good	Good
Universe Compact C #BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good
Universe Compact C #BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good
Universe Compact C #BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good
Universe Compact C #BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good
Universe Compact C #BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good
Fujinon HF-XA-5M #HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good
Fujinon HF-XA-5M #HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good
Fujinon HF-XA-5M #HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good
Fujinon HF-XA-5M #HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good
Fujinon HF-XA-5M #HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good
Fujinon CF-ZA-1S#CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Vignette
Fujinon CF-ZA-1S #CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF162ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF252ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF352ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF502ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good
Computar MPY #V0828-MPY2	C-Mt 12MP 1.1″ 8mm f/2.8	Good	Good	Good		Good
Computar MPY #V1228-MPY2	C-Mt 12MP 1.1″ 12mm f/2.8	Good	Good	Good		Good
Computar MPY #V1628-MPY2	C-Mt 12MP 1.1″ 16mm f/2.8	Good	Good	Good		Good
Computar MPY #V2528-MPY	C-Mt 12MP 1.1″ 25mm f/2.8	Good	Good	Good		Good
Computar MPY #V3528-MPY	C-Mt 12MP 1.1″ 35mm f/2.8	Good	Good	Good		Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good
Computar MPT #F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good	Good
Edmund Optics CA #11-320	TFL-Mt APS-C 50mm f/1.8
Edmund Optics CA #11-321	TFL-Mt APS-C 75mm f/2.8
Edmund Optics CA #11-322	TFL-Mt APS-C 100mm f/2.8

Lens Adapters	Manufacturer Part #	SKU
C-mount to S-mount (M12) Lens Adapter	LUCID ADA-C-S	ADA-C-S

IP67 Lens Tubes for Triton2 Models	Manufacturer Part #	SKU
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 34.6mm	LUCID IPTC-D270L346	IPTC-D270L346
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 29.9mm	LUCID IPTC-D355L299	IPTC-D355L299
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 38.5mm	LUCID IPTC-D440L385	IPTC-D440L385
IP67 C-Mount Lens Tube Inner ⌀: 35.5mm, Inner Length: 39.9mm	LUCID IPTC-D355L399	IPTC-D355L399
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 59.9mm	LUCID IPTC-D355L599	IPTC-D355L599
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 68.5mm	LUCID IPTC-D440L685	IPTC-D440L685
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 55.5mm	LUCID IPTC-D590L555	IPTC-D590L555
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 71.5mm	LUCID IPTC-D590L715	IPTC-D590L715

Cables for Triton2 Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green	LUCID CAB-MR-2M-A	CAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark Green	LUCID CAB-MR-2M	CAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green	LUCID CAB-MR-5M-A	CAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark Green	LUCID CAB-MR-5M	CAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark Green	LUCID CAB-MR-15M-A	CAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark Green	LUCID CAB-MR-15M	CAB-MR-15M
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 5m, Dark Green	LUCID CAB-MR-5M-RA1	CAB-MR-5M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 15m, Dark Green	LUCID CAB-MR-15M-RA1	CAB-MR-15M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 5m, Dark Green	LUCID CAB-MR-5M-RA2	CAB-MR-5M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, Dark Green	LUCID CAB-MR-15M-RA2	CAB-MR-15M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Triton Side] – 5m, Dark Green	LUCID CAB-MR-5M-RA4	CAB-MR-5M-RA4
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Triton Side] – 15m, Dark Green	LUCID CAB-MR-15M-RA4	CAB-MR-15M-RA4
M8 GPIO 8-pin (Amphenol) 1.0m Cable	LUCID GPIO-M8-1M-A	GPIO-M8-1M-A
M8 GPIO 8-pin 1.0m Cable	LUCID GPIO-M8	GPIO-M8
M8 GPIO 8-pin (Amphenol) 5.0m Cable	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A
M8 GPIO 8-pin 5.0m Cable	LUCID GPIO-M8-5M	GPIO-M8-5M
M8 GPIO 8-pin (Amphenol) 15.0m Cable	LUCID GPIO-M8-15M-A	GPIO-M8-15M-A
M8 GPIO 8-pin 15.0m Cable	LUCID GPIO-M8-15M	GPIO-M8-15M
M8 GPIO 8-pin Cable [Right Angle, Down] – 5.0m	LUCID GPIO-M8-5M-RA1	GPIO-M8-5M-RA1
M8 GPIO 8-pin Cable [Right Angle, Down] – 15.0m	LUCID GPIO-M8-15M-RA1	GPIO-M8-15M-RA1
M8 GPIO 8-pin Cable [Right Angle, Up] – 5.0m	LUCID GPIO-M8-5M-RA2	GPIO-M8-5M-RA2
M8 GPIO 8-pin Cable [Right Angle, Up] – 15m	LUCID GPIO-M8-15M-RA2	GPIO-M8-15M-RA2

Tripod Mount Adapter & Misc
Tripod Adapter	TRT-TR	TRT-TR
M8 GPIO IP67 Cap *(1 cap included with each Triton2 unit)	CAP-M8	CAP-M8

Interface Cards, PoE Injectors, Power Supply
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Card	ioi GE2PX4-PCIE4XE301	PCIE-POE4-2G
Procet 2.5G/5.0GbE 30W PoE+ Injector	Procet PT-PSE104G-30-5	POEP-PT-5G or POEP-PTEU-5G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1
