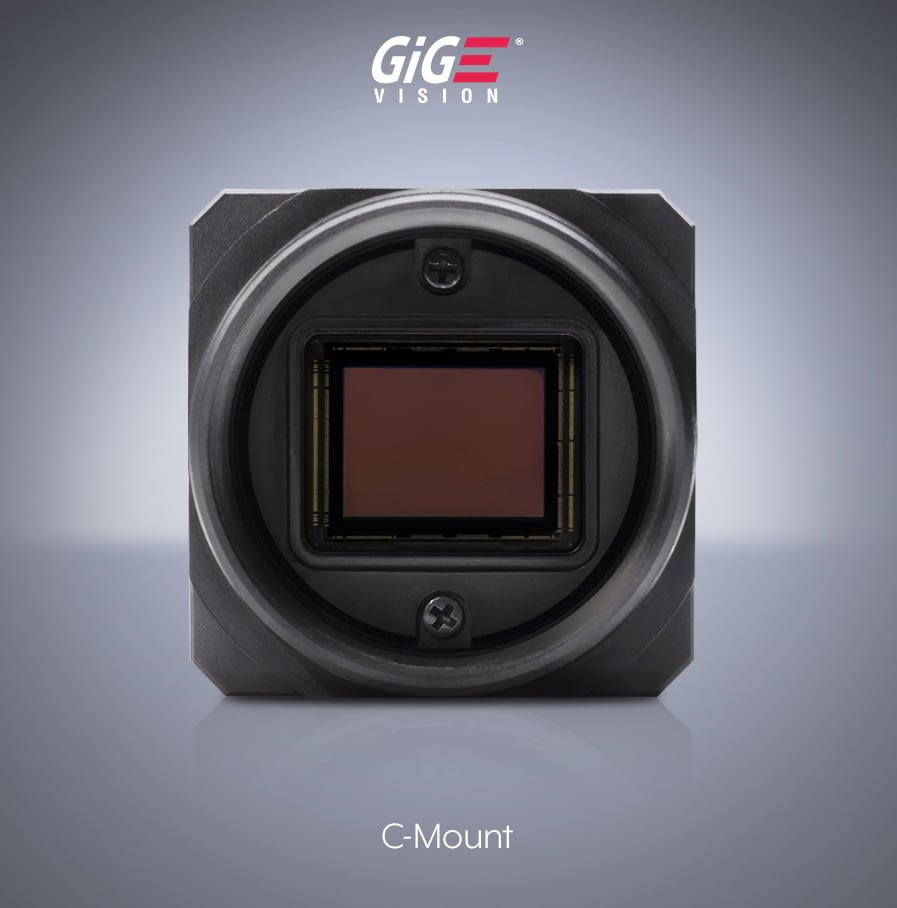

Модель Triton 8,1 МП

Sensor
Sony IMX546 CMOS

Resolution
8.1 MP, 2840 x 2840 px

Frame Rate
13.8 FPS

Model SKUs	Chroma	Lens Mount	GigE Vision Connector	Included Accessory
TRI081S-CC	Color	C-mount	M12	M8 GPIO IP67 Cap
TRI081S-MC	Mono	C-mount	M12	M8 GPIO IP67 Cap

Технические характеристики

[wpie_function custom_function=»cleanerall» data=»

Sensor Properties
Sensor Model	Sony IMX546 CMOS
Shutter Type	Global
Sensor Size	11.1 mm (Type 2/3)
Resolution	2840 x 2840 px, 8.1 MP
Pixel Size	2.74 µm (H) x 2.74 µm (V)
Framerate*	13.8 FPS (14.8 FPS) @ 8.1 MP

Physical Properties
Dimensions	29 x 29 x 45 mm
Lens Mount	C-Mount
Weight	67 g
Ingress Protection	IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)

Interface and Power Information
Digital Interface	1000BASE-T GigE M12 (8-Pin X-Coded), PoE
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption	3.1W via PoE, 2.5W when powered externally

Imaging Properties
Image Buffer	128 MB
Image Processing	Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats	Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes	Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC	12 bit
Gain Range	0 dB to 48 dB analog and digital
Exposure Time	25.34 μs to 10 s (Normal) / 2.31 μs to 2.47 μs (Short Mode)

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity	DIN EN 61000-6-2
Warranty	3 year

<td class='co"]

Lens Manufacturer Part #	Lens Description	0.4MP TRI004S	1.6MP TRI016S	2.3MP TRI023S	2.8MP TRI028S	3.2MP TRI032S	5.0MP TRI050S	5.0MP TRI051S	5.0MP TRI050S-PQ	5.4MP TRI054S	6.3MP TRI064S	7.1MP TRI071S	8.1MP TRI081S	8.9MP TRI089S	12.2MP TRI122S	12.3MP TRI120S	12.3MP TRI124S	16.2MP TRI162S	20.0MP TRI200S	20.4MP TRI204S	24.5MP TRI245S	2K TRI02KA
Edmund Optics UC #33-300	C-Mt 1/2″ 4mm f/1.8	Good	Good	Good
Edmund Optics UC #33-301	C-Mt 1/2″ 6mm f/1.85	Good	Good	Good
Edmund Optics UC #33-307	C-Mt 1/2″ 8mm f/1.8	Good	Good	Good
Edmund Optics UC #33-303	C-Mt 1/1.8″ 12mm f/1.8	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics UC #33-304	C-Mt 1/1.8″ 16mm f/1.8	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics UC #33-305	C-Mt 1/1.8″ 25mm f/1.85	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics C #67-709	C-Mt 1/1.8′ 6mm, f1.4	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics C #58-000	C-Mt 2/3′ 8.5mm, f/1.3	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #58-001	C-Mt 2/3′ 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-870	C-Mt 2/3′ 16mm, f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-871	C-Mt 2/3′ 25mm, f/1.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-872	C-Mt 2/3′ 35mm, f/1.65	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-873	C-Mt 2/3′ 50mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon CF-ZA-1S#CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Vignette	Good
Fujinon CF-ZA-1S #CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF162ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF252ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF352ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF502ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY #V0828-MPY2	C-Mt 12MP 1.1″ 8mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1228-MPY2	C-Mt 12MP 1.1″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1628-MPY2	C-Mt 12MP 1.1″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V2528-MPY	C-Mt 12MP 1.1″ 25mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V3528-MPY	C-Mt 12MP 1.1″ 35mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPT #F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Edmund Optics CA #11-320	TFL-Mt APS-C 50mm f/1.8
