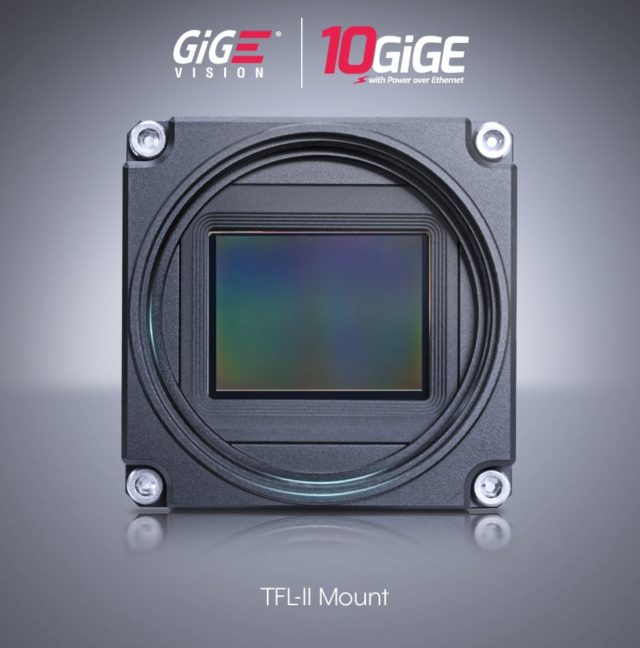

Модель Atlas10 65 МП

Модель Atlas10 65 МП

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
Артикул: N/A TME арт.: N/A
Sensor
Gpixel GMAX3265 CMOS

Resolution
65 MP 9344 x 7000 px

Frame Rate
14.1 FPS

Model SKUsChromaLens Mount10GBASE-T GigE Vision Connector
ATX650G-MT2MonoTFL-II mountM12
ATX650G-CT2ColorTFL-II mountM12

Технические характеристики

Sensor Properties
Sensor ModelGpixel GMAX3265 CMOS
Shutter TypeGlobal Shutter
Sensor Size37.4 mm (Type 2.3)
Resolution9344 x 7000 px, 65 MP
Pixel Size3.2 µm (H) x 3.2 µm (V)
Framerate14.1 FPS @ 65.0MP (12 Bit ADC Mode)

Physical Properties
Dimensions55 x 55 x 95.5 mm
Lens MountTFL-II Mount
Weight304 g

Interface and Power Information
Digital Interface10GBASE-T*, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE (*10GBASE-T runs in Short Reach Mode, 25m cable length max)
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Consumption

Imaging Properties
Image Buffer380 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image ModesHorizontal and vertical binning, ROI
ADC12 bit
Gain Range0 to 13.66dB
Exposure Time24.832 µs to 10 sec

Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataFrame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataExposure start/end
Counter Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 50°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64*
Warranty3 year

TFL LensesManufacturer Part #SKU
Edmund Optics TFL-Mount APS-C 35mm f/2.8#11-319EOCA350
Edmund Optics TFL-Mount APS-C 50mm f/1.8#11-320EOCA500
Edmund Optics TFL-Mount APS-C 75mm f/2.8#11-321EOCA750
Edmund Optics TFL-Mount APS-C 100mm f/2.8#11-322EOCA01000
C-Mount Lenses
Computar C-Mount 45MP 4/3″ 12mm f/2.8F1228-MPTCC120-45M
Computar C-Mount 45MP 4/3″ 25mm f/2.4F2524-MPTCC250-45M
Lens Adapter
TFL-II Mount to F-Mount Lens (w/ Adjustable BFD) AdapterADA-TFL2-F-ADJADA-TFL2-F-ADJ
TFL-Mount to F-Mount Lens (w/ Adjustable BFD) AdapterADA-TFL-F-ADJADA-TFL-F-ADJ
TFL-Mount Lens to F-Mount AdapterADA-TFL-FADA-TFL-F
TFL-Mount Lens to C-Mount AdapterADA-TFL-CADA-TFL-C
TFL-Mount to Canon EF-Mount (w/ GPIO and Power) Birger AdapterADA-TFL-EF(US/EU)ADA-TFL-EF(US/EU)
Cables for Atlas Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark GreenLUCID CAB-MR-2M-ACAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark GreenLUCID CAB-MR-2MCAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark GreenLUCID CAB-MR-5M-ACAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark GreenLUCID CAB-MR-5MCAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark GreenLUCID CAB-MR-15M-ACAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark GreenLUCID CAB-MR-15MCAB-MR-15M
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 5m, Dark GreenLUCID CAB-MR-5M-RA1CAB-MR-5M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 15m, Dark GreenLUCID CAB-MR-15M-RA1CAB-MR-15M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 5m, Dark GreenLUCID CAB-MR-5M-RA2CAB-MR-5M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, Dark GreenLUCID CAB-MR-15M-RA2CAB-MR-15M-RA2
M8 GPIO 8-pin (Amphenol) 1.0m CableGPIO-M8-1M-AGPIO-M8-1M-A
M8 GPIO 8-pin 1.0m CableGPIO-M8GPIO-M8
M8 GPIO 8-pin (Amphenol) 5.0m CableGPIO-M8-5M-AGPIO-M8-5M-A
M8 GPIO 8-pin 5.0m CableGPIO-M8-5MGPIO-M8-5M
M8 GPIO 8-pin (Amphenol) 15.0m CableGPIO-M8-15M-AGPIO-M8-15M-A
M8 GPIO 8-pin 15.0m CableGPIO-M8-15MGPIO-M8-15M
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-5.0mLUCID GPIO-M8-5M-RA1GPIO-M8-5M-RA1
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-15mLUCID GPIO-M8-15M-RA1GPIO-M8-15M-RA1
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-5.0mLUCID GPIO-M8-5M-RA2GPIO-M8-5M-RA2
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-15mLUCID GPIO-M8-15M-RA2GPIO-M8-15M-RA2
Tripod Mount Adapter
Atlas10 Tripod AdapterATX-TRATX-TR
Interface Cards, PoE Injectors, Power Supply
2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI DGEAP2X-PCIE8XG302PCIE-POE2-MG
10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI GE10-PCIE4XG301PCIE-POE1-MG2
Procet 2.5/5.0/10GbE 60W PoE++ InjectorProcet PT-PSE104GB-60-10POEP-PT(EU)
Procet 2.5/5.0GbE 30W PoE+ InjectorProcet PT-PSE104G-30-5POEP-PT(EU)-5G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1
