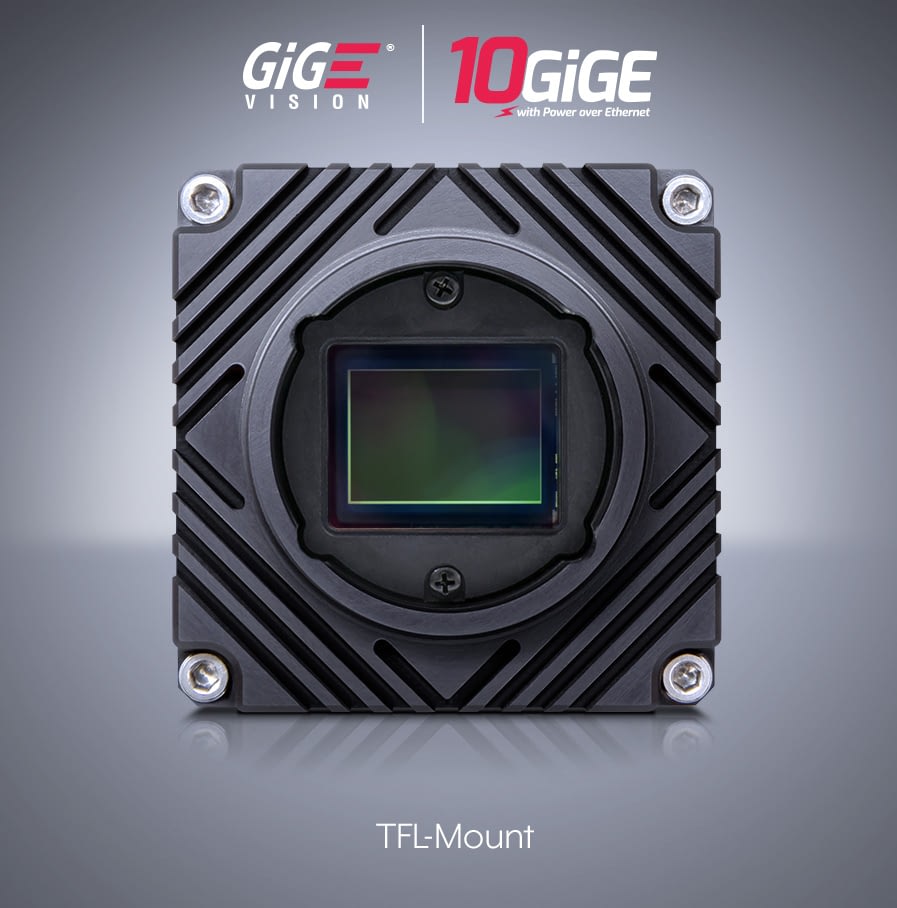

Модель Atlas10 47 МП

Модель Atlas10 47 МП

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
Артикул: N/A TME арт.: N/A
Sensor
Sony IMX492 CMOS

Resolution
47 MP 8192 x 5556 px

Frame Rate
22.6 FPS

Model SKUsChromaLens Mount10GBASE-T GigE Vision Connector
ATX470S-CTColorTFL-mountM12
ATX470S-MTMonoTFL-mountM12

Технические характеристики

Sensor Properties
Sensor ModelSony IMX492 CMOS
Shutter TypeRolling, Global Reset
Sensor Size23.1 mm (Type 4/3)
Resolution8192 x 5556 px, 47 MP
Pixel Size2.315 µm (H) x 2.315 µm (V)
Framerate*22.6 @ 47 MP (10 bit ADC mode)
15.5 FPS @ 47 MP (12 bit ADC mode)

Physical Properties
Dimensions55 x 55 x 95.5 mm
Lens MountTFL-Mount
Weight325 g

Interface and Power Information
Digital Interface10GBASE-T*, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE (*10GBASE-T runs in Short Reach Mode, 25m cable length max)
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Consumption

Imaging Properties
Image Buffer380 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI
ADC10, 12 bit
Gain Range12 dB to 27 dB analog and digital
Exposure Time125 µs to 10 sec

Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataFrame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataExposure start/end
Counter Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 50°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64*
Warranty3 year

Mono EMVA 1288 Results
Dynamic Range65.39 dB
SNR (Max)41.95 dB
Saturation Capacity15655 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)10.17 γ
Temporal Dark Noise7.83 e-
Gain0.247 DN / e-
Dark Current8.05 e- / s
Dark Signal Non-Uniformity0.97 e-
Photo Response Non-Uniformity0.62 %
Linearity Error Max/Min0.135/-0.088 %

Color EMVA 1288 Results
Dynamic Range65.5 dB
SNR (Max)41.94 dB
Saturation Capacity15646 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)11.28 γ
Temporal Dark Noise7.72 e-
Gain0.252 DN / e-
Dark Current6.88 e- / s
Dark Signal Non-Uniformity0.95 e-
Photo Response Non-Uniformity0.677 %
Linearity Error Max/Min0.098/-0.053 %

TFL LensesManufacturer Part #SKU
Edmund Optics TFL-Mount APS-C 35mm f/2.8#11-319EOCA350
Edmund Optics TFL-Mount APS-C 50mm f/1.8#11-320EOCA500
Edmund Optics TFL-Mount APS-C 75mm f/2.8#11-321EOCA750
Edmund Optics TFL-Mount APS-C 100mm f/2.8#11-322EOCA01000
C-Mount Lenses
Computar C-Mount 45MP 4/3″ 12mm f/2.8F1228-MPTCC120-45M
Computar C-Mount 45MP 4/3″ 25mm f/2.4F2524-MPTCC250-45M
Lens Adapter
TFL-II Mount to F-Mount Lens (w/ Adjustable BFD) AdapterADA-TFL2-F-ADJADA-TFL2-F-ADJ
TFL-Mount to F-Mount Lens (w/ Adjustable BFD) AdapterADA-TFL-F-ADJADA-TFL-F-ADJ
TFL-Mount Lens to F-Mount AdapterADA-TFL-FADA-TFL-F
TFL-Mount Lens to C-Mount AdapterADA-TFL-CADA-TFL-C
TFL-Mount to Canon EF-Mount (w/ GPIO and Power) Birger AdapterADA-TFL-EF(US/EU)ADA-TFL-EF(US/EU)
Cables for Atlas Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark GreenLUCID CAB-MR-2M-ACAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark GreenLUCID CAB-MR-2MCAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark GreenLUCID CAB-MR-5M-ACAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark GreenLUCID CAB-MR-5MCAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark GreenLUCID CAB-MR-15M-ACAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark GreenLUCID CAB-MR-15MCAB-MR-15M
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 5m, Dark GreenLUCID CAB-MR-5M-RA1CAB-MR-5M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 15m, Dark GreenLUCID CAB-MR-15M-RA1CAB-MR-15M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 5m, Dark GreenLUCID CAB-MR-5M-RA2CAB-MR-5M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, Dark GreenLUCID CAB-MR-15M-RA2CAB-MR-15M-RA2
M8 GPIO 8-pin (Amphenol) 1.0m CableGPIO-M8-1M-AGPIO-M8-1M-A
M8 GPIO 8-pin 1.0m CableGPIO-M8GPIO-M8
M8 GPIO 8-pin (Amphenol) 5.0m CableGPIO-M8-5M-AGPIO-M8-5M-A
M8 GPIO 8-pin 5.0m CableGPIO-M8-5MGPIO-M8-5M
M8 GPIO 8-pin (Amphenol) 15.0m CableGPIO-M8-15M-AGPIO-M8-15M-A
M8 GPIO 8-pin 15.0m CableGPIO-M8-15MGPIO-M8-15M
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-5.0mLUCID GPIO-M8-5M-RA1GPIO-M8-5M-RA1
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-15mLUCID GPIO-M8-15M-RA1GPIO-M8-15M-RA1
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-5.0mLUCID GPIO-M8-5M-RA2GPIO-M8-5M-RA2
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-15mLUCID GPIO-M8-15M-RA2GPIO-M8-15M-RA2
Tripod Mount Adapter
Atlas10 Tripod AdapterATX-TRATX-TR
Interface Cards, PoE Injectors, Power Supply
2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI DGEAP2X-PCIE8XG302PCIE-POE2-MG
10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI GE10-PCIE4XG301PCIE-POE1-MG2
Procet 2.5/5.0/10GbE 60W PoE++ InjectorProcet PT-PSE104GB-60-10POEP-PT(EU)
Procet 2.5/5.0GbE 30W PoE+ InjectorProcet PT-PSE104G-30-5POEP-PT(EU)-5G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1
