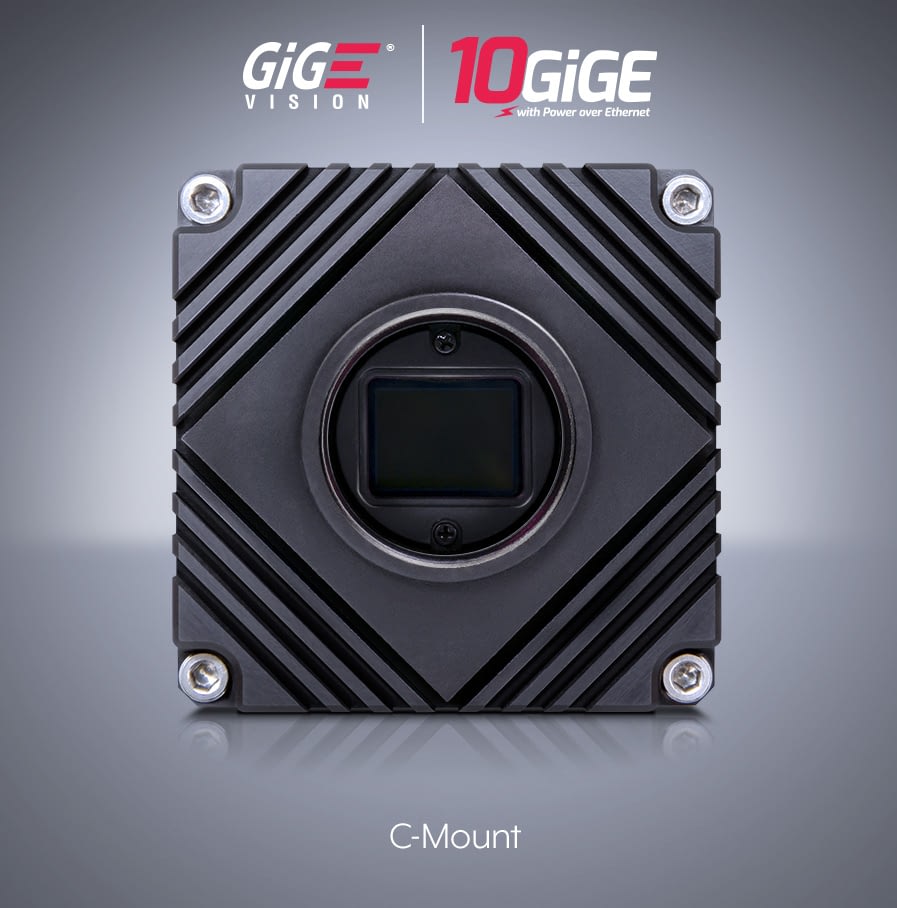

Модель Atlas10 20,4 МП

Sensor
Sony IMX531 CMOS

Resolution
20.4 MP 4504 x 4504 px

Frame Rate
54.1 FPS

Model SKUs	Chroma	Lens Mount	10GBASE-T GigE Vision Connector
ATX204S-CC	Color	C-mount	M12
ATX204S-MC	Mono	C-mount	M12

Технические характеристики

Sensor Properties
Sensor Model	Sony IMX531 CMOS (Pregius-S, BSI)
Shutter Type	Global
Sensor Size	17.5mm (Type 1.1)
Resolution	4504 x 4504 px, 20.4 MP
Pixel Size	2.74 µm (H) x 2.74 µm (V)
Framerate*	54.1 FPS (59.2 FPS) @ 20.4 MP (8 Bit ADC mode) 54.1 FPS (59.3 FPS) @ 20.4 MP (10 Bit ADC mode) 54.1 FPS (56.5 FPS) @ 20.4 MP (12 Bit ADC mode)

Physical Properties
Dimensions	55 x 55 x 95.5 mm
Lens Mount	C-Mount
Weight	325 g

Interface and Power Information
Digital Interface	10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX M12, PoE (10GBASE-T runs in Short Reach Mode, 25m cable length max)
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Consumption

Imaging Properties
Image Buffer	380 MB
Image Processing	Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats	Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes	Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC	8, 10, 12 bit
Gain Range	0 dB to 48 dB analog and digital Dual ADC Mode (low-gain, high-gain)
Exposure Time	6.24 μs to 10 s (Normal) 2.296 μs to 2.464 μs (Short Mode)

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data	Exposure start/end
Counter Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 50°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64*
Warranty	3 year

Mono EMVA 1288 Results
Dynamic Range	70.73 dB
SNR (Max)	39.74 dB
Saturation Capacity	9426 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	3.70 γ
Temporal Dark Noise	2.13 e-
Gain	0.42 DN / e-
Dark Current	0.84 e- / s
Dark Signal Non-Uniformity	0.34 e-
Photo Response Non-Uniformity	0.62 %
Linearity Error Max/Min	0.16/-0.33 %

Color EMVA 1288 Results
Dynamic Range	70.7 dB
SNR (Max)	39.71 dB
Saturation Capacity	9374 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	4.93 γ
Temporal Dark Noise	2.12 e-
Gain	0.42 DN / e-
Dark Current	0.59 e- / s
Dark Signal Non-Uniformity	0.32 e-
Photo Response Non-Uniformity	0.88 %
Linearity Error Max/Min	0.13/-0.28 %

C-mount Lenses for max. 4/3′ Sensor	Manufacturer Part #	SKU
Fujinon C-Mount 23MP 1.2″ 8mm f/1.8	Fujinon CF8ZA-1S	FCZ080
Fujinon C-Mount 23MP 1.2″ 12mm f/1.8	Fujinon CF12ZA-1S	FCZ120
Fujinon C-Mount 23MP 1.2″ 16mm f/1.8	Fujinon CF162ZA-1S	FCZ160
Fujinon C-Mount 23MP 4/3″ 25mm f/1.8	Fujinon CF252ZA-1S	FCZ250
Fujinon C-Mount 23MP 4/3″ 35mm f/1.8	Fujinon CF352ZA-1S	FCZ350
Fujinon C-Mount 23MP 4/3″ 35mm f/1.8	Fujinon CF502ZA-1S	FCZ500

C-mount Lenses for max. 1.1′ Sensor
Computar C-Mount 12MP 1.1″ 8mm f/2.8	Computar V0828-MPY	CC080-12M
Computar C-Mount 12MP 1.1″ 12mm f/2.8	Computar V1228-MPY	CC120-12M
Computar C-Mount 12MP 1.1″ 16mm f/2.8	Computar V1628-MPY	CC160-12M
Computar C-Mount 12MP 1.1″ 25mm f/2.8	Computar V2528-MPY	CC250-12M
Computar C-Mount 12MP 1.1″ 35mm f/2.8	Computar V3528-MPY	CC350-12M

Cables for Atlas Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green	LUCID CAB-MR-2M-A	CAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark Green	LUCID CAB-MR-2M	CAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green	LUCID CAB-MR-5M-A	CAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark Green	LUCID CAB-MR-5M	CAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark Green	LUCID CAB-MR-15M-A	CAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark Green	LUCID CAB-MR-15M	CAB-MR-15M
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 5m, Dark Green	LUCID CAB-MR-5M-RA1	CAB-MR-5M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 15m, Dark Green	LUCID CAB-MR-15M-RA1	CAB-MR-15M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 5m, Dark Green	LUCID CAB-MR-5M-RA2	CAB-MR-5M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, Dark Green	LUCID CAB-MR-15M-RA2	CAB-MR-15M-RA2
M8 GPIO 8-pin (Amphenol) 1.0m Cable	LUCID GPIO-M8-1M-A	GPIO-M8-1M-A
M8 GPIO 8-pin 1.0m Cable	LUCID GPIO-M8	GPIO-M8
M8 GPIO 8-pin (Amphenol) 5.0m Cable	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A
M8 GPIO 8-pin 5.0m Cable	LUCID GPIO-M8-5M	GPIO-M8-5M
M8 GPIO 8-pin (Amphenol) 15.0m Cable	LUCID GPIO-M8-15M-A	GPIO-M8-15M-A
M8 GPIO 8-pin 15.0m Cable	LUCID GPIO-M8-15M	GPIO-M8-15M
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-5.0m	LUCID GPIO-M8-5M-RA1	GPIO-M8-5M-RA1
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-15m	LUCID GPIO-M8-15M-RA1	GPIO-M8-15M-RA1
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-5.0m	LUCID GPIO-M8-5M-RA2	GPIO-M8-5M-RA2
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-15m	LUCID GPIO-M8-15M-RA2	GPIO-M8-15M-RA2

Tripod Mount Adapter
Atlas10 Tripod Adapter	ATX-TR	ATX-TR

Interface Cards, PoE Injectors, Power Supply
2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet Card	IOI DGEAP2X-PCIE8XG302	PCIE-POE2-MG
10G/5G/2.5G/1G PoE+ NBASE-T Ethernet Card	IOI GE10-PCIE4XG202P	PCIE-POE1-MG
Procet 2.5/5.0/10GbE 60W PoE++ Injector	Procet PT-PSE104GB-60-10	POEP-PT(EU)
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1
