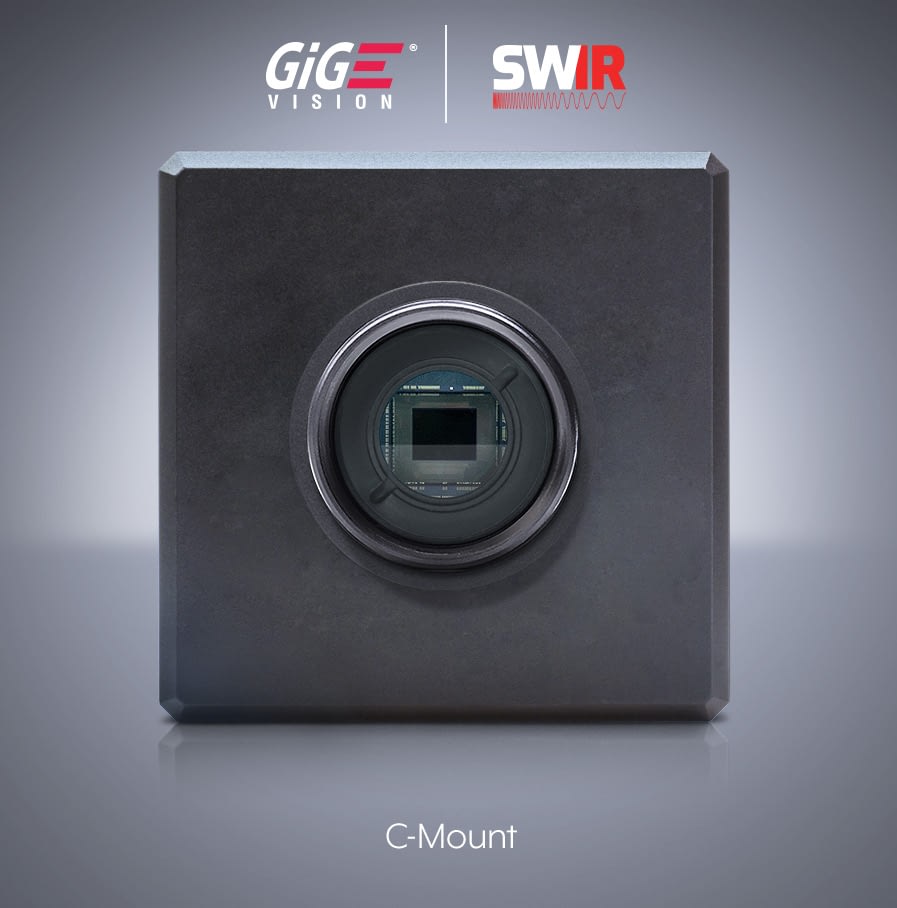

Модель Atlas SWIR 1.3MP IP67

Sensor
Sony IMX990 InGaAs

Resolution
1.3 MP, 1280 x 1024 px

Frame Rate
84.9 FPS

Model SKUs	Chroma	Sensitivity Range	Cooling	Lens Mount	GigE Vision Connector
ATP013S-WC	Mono	400 nm to 1700 nm	TEC1	C-mount	M12

Технические характеристики

Sensor Properties
Sensor Model	Sony IMX990 InGaAs CMOS
Shutter Type	Global
Sensor Size	8.2 mm (Type 1/2″)
Resolution	1280 x 1024 px, 1.3 MP
Pixel Size	5.0 µm (H) x 5.0 µm (V)
Framerate*	84.9 FPS (94.4 FPS) @ 1.3 MP (8 Bit ADC mode) 84.9 FPS (94.4 FPS) @ 1.3 MP (10 Bit ADC mode) 71 FPS (71 FPS) @ 1.3 MP (12 Bit ADC mode)
Sensitivity Range	400 nm to 1700 nm (See EMVA 1288 Tab)

Physical Properties
Dimensions	60 x 60 x 65 mm
Lens Mount	C-Mount
Weight	435 g
Ingress Protection	IP67 (For IP67 protection Atlas must be used with IP67 lens tube and cables)

Interface and Power Information
Digital Interface	1000BASE-T, 100BASE-TX M12, PoE+
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Consumption

Imaging Properties
Image Buffer	380 MB
Image Processing	Gain, gamma, black level, white balance, LUT, pixel correction, hue, saturation
Pixel Formats	Mono8/10/12/16
Image Modes	Decimation, Binning, ROI, horizontal and vertical flip
ADC	8, 10, 12 bit
Gain Range	0 dB to 42 dB analog and digital
Exposure Time	20.5 μs to 10 s (Normal) / 2.88 μs to 7.42 μs (Short Mode)

Camera Features
Cooling Capability	Delta Δ T up to 30°C TEC up to 45°C ambient
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 50°C Case Temperature
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration*	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Warranty	3 year

Mono EMVA 1288 Results Gain 0dB, TEC @ 15C
Dynamic Range	57.2 dB
SNR (Max)	51.5 dB
Saturation Capacity	143000 e-
Temporal Dark Noise	196 e-
Photo Response Non-Uniformity	0.59 %
Linearity Error Max/Min	0.23/-0.37 %
