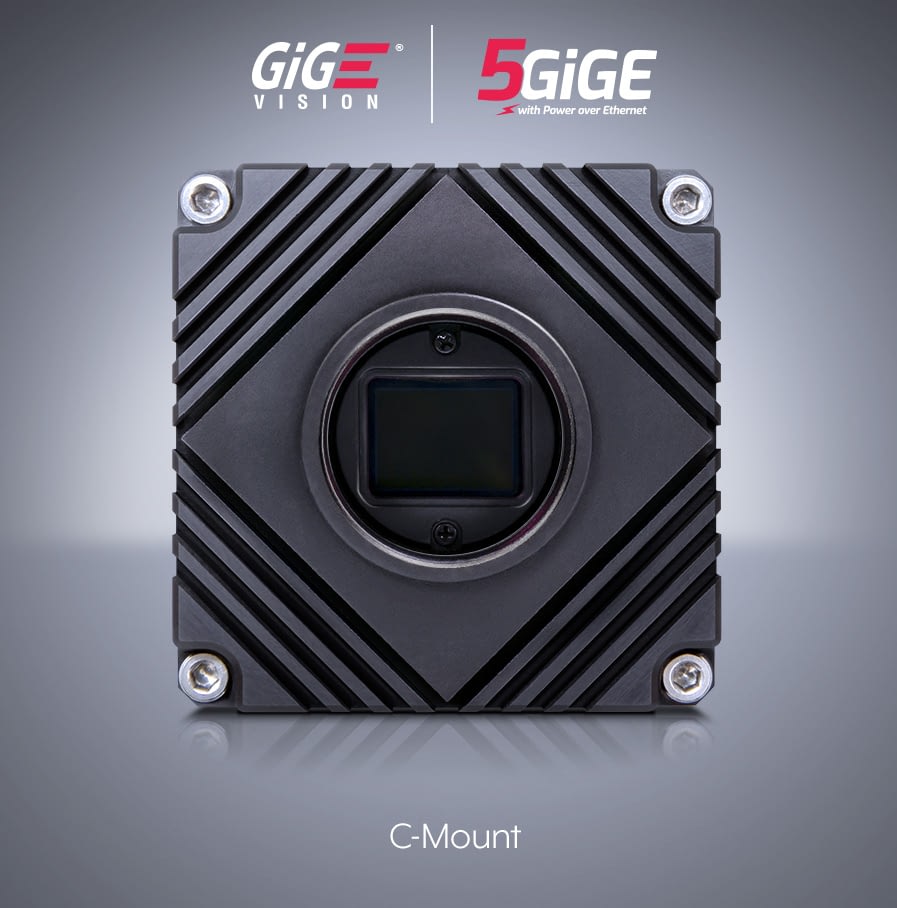

Модель Atlas 7.1 МП

Модель Atlas 7.1 МП

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
Артикул: N/A TME арт.: N/A
Sensor
Sony IMX420 CMOS

Resolution
7.1 MP 3208 x 2200 px

Frame Rate
74.6 FPS

Model SKUsChromaLens Mount5GBASE-T GigE Vision Connector
ATL071S-CCColorC-mountM12
ATL071S-MCMonoC-mountM12

Технические характеристики

Sensor Properties
Sensor ModelSony IMX420 CMOS
Shutter TypeGlobal
Sensor Size17.6mm (Type 1.1)
Resolution3208 x 2200 px, 7.1 MP
Pixel Size4.5 µm (H) x 4.5 µm (V)
Framerate74.6 FPS @ 7.1 MP (8 Bit ADC mode)
60.5 FPS @ 7.1 MP (10 Bit ADC mode)
50.9 FPS @ 7.1MP (12 Bit ADC mode)

Physical Properties
Dimensions55 x 55 x 70 mm
Lens MountC-Mount
Weight240 g

Interface and Power Information
Digital Interface5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption8W via PoE, 7W when powered externally

Imaging Properties
Image Buffer380 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC8, 10, 12 bit
Gain Range0 dB to 48 dB analog and digital
Conversion GainNormal and High Mode (High: 2.3x in analog domain)
Exposure Time13.7 μs to 10 s (Normal) / 1 μs to 5 μs (Short Mode)

Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataFrame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataExposure start/end
Counter Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64
Warranty3 year

Mono EMVA 1288 Results
Dynamic Range71.92 dB
SNR (Max)43.9 dB
Saturation Capacity24548 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)8.43 γ
Temporal Dark Noise5.43 e-
Gain0.16 DN / e-
Dark Current1.34 e- / s
Dark Signal Non-Uniformity0.8 e-
Photo Response Non-Uniformity0.7 %
Linearity Error Max/Min0.15/-0.30 %

Color EMVA 1288 Results
Dynamic Range71.86 dB
SNR (Max)43.85 dB
Saturation Capacity24269 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)9.4 γ
Temporal Dark Noise5.4 e-
Gain0.161 DN / e-
Dark Current1.05 e- / s
Dark Signal Non-Uniformity0.79 e-
Photo Response Non-Uniformity0.66 %
Linearity Error Max/Min0.14/-0.28 %

Lens Manufacturer Part #Lens Description2.8MP
ATL028S		5.0MP
ATL050S		7.1MP
ATL071S		8.9MP
ATL089S		12.3MP
ATL120S		16.8MP
ATL168S		19.6MP
ATL196S		31.4MP
ATL314S
Edmund Optics UC #33-300C-Mount 1/2″ 4mm f/1.8
Edmund Optics UC #33-301C-Mount 1/2″ 6mm f/1.85
Edmund Optics UC #33-307C-Mount 1/2″ 8mm f/1.8
Edmund Optics UC #33-303C-Mount 1/1.8″ 12mm f/1.8
Edmund Optics UC #33-304C-Mount 1/1.8″ 16mm f/1.8
Edmund Optics UC #33-305C-Mount 1/1.8″ 25mm f/1.85
Edmund Optics C #67-709C-Mount 1/1.8′ 6mm, f1.4
Edmund Optics C #58-000C-Mount 2/3′ 8.5mm, f/1.3GoodGood
Edmund Optics C #58-001C-Mount 2/3′ 12mm, f/1.8GoodGood
Edmund Optics C #59-870C-Mount 2/3′ 16mm, f/1.6GoodGood
Edmund Optics C #59-871C-Mount 2/3′ 25mm, f/1.4GoodGood
Edmund Optics C #59-872C-Mount 2/3′ 35mm, f/1.65GoodGood
Edmund Optics C #59-873C-Mount 2/3′ 50mm, f/2GoodGood
Universe Compact C #BL060CC-Mount 5MP 2/3″ 6mm f/2.0GoodGood
Universe Compact C #BL080CC-Mount 5MP 2/3″ 8mm f/2.0GoodGood
Universe Compact C #BL120CC-Mount 5MP 2/3″ 12mm f/2.0GoodGood
Universe Compact C #BL160CC-Mount 5MP 2/3″ 16mm f/2.0GoodGood
Universe Compact C #BL250CC-Mount 5MP 2/3″ 25mm f/1.8GoodGood
Fujinon HF-XA-5M #HF6XA-5MC-Mount 5MP 2/3″ 6mm f/1.9GoodGood
Fujinon HF-XA-5M #HF8XA-5MC-Mount 5MP 2/3″ 8mm f/1.6GoodGood
Fujinon HF-XA-5M #HF12XA-5MC-Mount 5MP 2/3″ 12mm f/1.6GoodGood
Fujinon HF-XA-5M #HF16XA-5MC-Mount 5MP 2/3″ 16mm f/1.6GoodGood
Fujinon HF-XA-5M #HF25XA-5MC-Mount 5MP 2/3″ 25mm f/1.6GoodGood
Fujinon CF-ZA-1S#CF8ZA-1SC-Mount 23MP 1.2″ 8mm f/1.8GoodGoodGoodGoodGood
Fujinon CF-ZA-1S #CF12ZA-1SC-Mount 23MP 1.2″ 12mm f/1.8GoodGoodGoodGoodGood
Fujinon CF-ZA-1S #CF162ZA-1SC-Mount 23MP 1.2″ 16mm f/1.8GoodGoodGoodGoodGood
Fujinon CF-ZA-1S #CF252ZA-1SC-Mount 23MP 4/3″ 25mm f/1.8GoodGoodGoodGoodGood
Fujinon CF-ZA-1S #CF352ZA-1SC-Mount 23MP 4/3″ 35mm f/1.8GoodGoodGoodGoodGood
Fujinon CF-ZA-1S #CF502ZA-1SC-Mount 23MP 4/3″ 50mm f/2.4GoodGoodGoodGoodGood
Computar MPY #V0828-MPY2C-Mount 12MP 1.1″ 8mm f/2.8GoodGoodGoodGoodGood
Computar MPY #V1228-MPY2C-Mount 12MP 1.1″ 12mm f/2.8GoodGoodGoodGoodGood
Computar MPY #V1628-MPY2C-Mount 12MP 1.1″ 16mm f/2.8GoodGoodGoodGoodGood
Computar MPY #V2528-MPYC-Mount 12MP 1.1″ 25mm f/2.8GoodGoodGoodGoodGood
Computar MPY #V3528-MPYC-Mount 12MP 1.1″ 35mm f/2.8GoodGoodGoodGoodGood
Computar MPT #F1228-MPTC-Mount 45MP 4/3″ 12mm f/2.8GoodGoodGoodGoodGood
Computar MPT #F2524-MPTC-Mount 45MP 4/3″ 25mm f/2.4GoodGoodGoodGoodGood
Edmund Optics CA #11-319TFL-Mount APS-C 35mm f/1.8GoodGoodGood
Edmund Optics CA #11-320TFL-Mount APS-C 50mm f/1.8GoodGoodGood
Edmund Optics CA #11-321TFL-Mount APS-C 75mm f/2.8GoodGoodGood
Edmund Optics CA #11-322TFL-Mount APS-C 100mm f/2.8GoodGoodGood

Cables for Atlas Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark GreenLUCID CAB-MR-2M-ACAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark GreenLUCID CAB-MR-2MCAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark GreenLUCID CAB-MR-5M-ACAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark GreenLUCID CAB-MR-5MCAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark GreenLUCID CAB-MR-15M-ACAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark GreenLUCID CAB-MR-15MCAB-MR-15M
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 5m, Dark GreenLUCID CAB-MR-5M-RA1CAB-MR-5M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 15m, Dark GreenLUCID CAB-MR-15M-RA1CAB-MR-15M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 5m, Dark GreenLUCID CAB-MR-5M-RA2CAB-MR-5M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, Dark GreenLUCID CAB-MR-15M-RA2CAB-MR-15M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Atlas/Helios Side] – 5m, Dark GreenLUCID CAB-MR-5M-RA3CAB-MR-5M-RA3
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Atlas/Helios Side] – 15m, Dark GreenLUCID CAB-MR-15M-RA3CAB-MR-15M-RA3
M8 GPIO 8-pin (Amphenol) 1.0m CableGPIO-M8-1M-AGPIO-M8-1M-A
M8 GPIO 8-pin 1.0m CableGPIO-M8GPIO-M8
M8 GPIO 8-pin (Amphenol) 5.0m CableGPIO-M8-5M-AGPIO-M8-5M-A
M8 GPIO 8-pin 5.0m CableGPIO-M8-5MGPIO-M8-5M
M8 GPIO 8-pin (Amphenol) 15.0m CableGPIO-M8-15M-AGPIO-M8-15M-A
M8 GPIO 8-pin 15.0m CableGPIO-M8-15MGPIO-M8-15M
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-5.0mLUCID GPIO-M8-5M-RA1GPIO-M8-5M-RA1
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas)]-15mLUCID GPIO-M8-15M-RA1GPIO-M8-15M-RA1
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-5.0mLUCID GPIO-M8-5M-RA2GPIO-M8-5M-RA2
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas)]-15mLUCID GPIO-M8-15M-RA2GPIO-M8-15M-RA2
Tripod Mount Adapter
Atlas Tripod AdapterATL-TRATL-TR
Interface Cards, PoE Injectors, Power Supply
2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet Cardioi DGEAP2X-PCIE8XG302PCIE-POE2-MG
10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI GE10-PCIE4XG202PPCIE-POE1-MG2
Procet 2.5/5.0/10GbE 60W PoE++ InjectorProcet PT-PSE104GB-60-10POEP-PT(EU)
Procet 2.5/5.0GbE 30W PoE+ InjectorProcet PT-PSE104G-30-5POEP-PT(PTEU)-5G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1
