Description

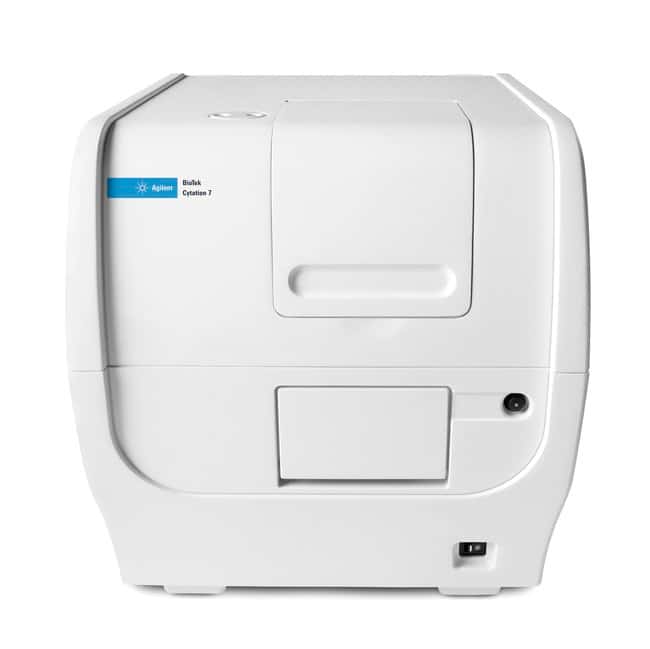

BioTek Cytation 7 cell imaging multi-mode reader combines automated digital upright and inverted widefield microscopy with conventional multi-mode microplate reading. Cytation 7 includes continually variable bandpass monochromators for versatility and performance for general multi-mode plate reader applications
The inverted microscopy module provides sample visualization and the upright microscopy module with reflected light imaging enables even more applications, including ELISpot and fast slide scanning. Cytation 7 is controlled by Gen5 software, which combines ease-of-use with powerful processing and analysis capabilities.
Технические характеристики
| Type | Automated Microscope/Multi-Mode Microplate Reader |
| Linearity | <,1% from 0 to 3 OD |
| Detection Method | Monochromator- based fluorescence intensity, luminescence and absorbance |
| No. of Dispensers | 2 Syringe Pumps |
| Reading Options | End point, kinetic, spectral scanning and well area scanning |
| Wavelength | Luminescence 300 to 700 nm, Absorbance 230 to 999 nm, 1 nm increment |
| Light Source | Xenon Flash |
| Scan Speed | 96-wells: 11 s, 384-wells: 22 s |
| Certifications/Compliance | CE and TUV marked. RoHS compliant. |
| Voltage | 100/240 V |
