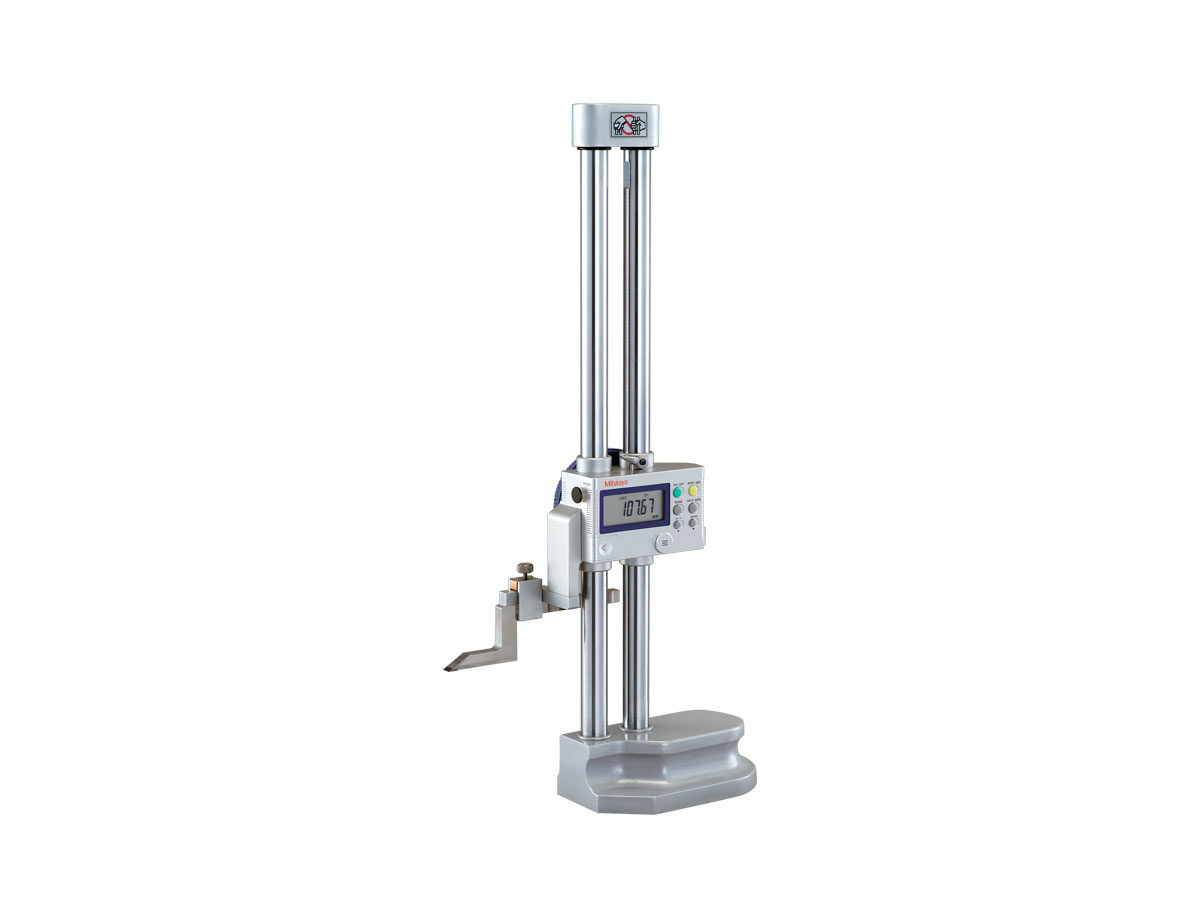

The highly versatile Mitutoyo multi-function digital height gage provides precise height measurements combined with an optional bi-direction touch probe signal to measure step, inside width and outside width. The included carbide-tipped long scriber is extremely durable and provides highly accurate marks on your workpiece. Measurements are shown on an easy-to-read LCD display.
- Available in Metric and Inch/Metric models
- Metric models are available in three measurement ranges
- Inch/Metric models are available in four measurement ranges
- An optional bi-directional touch signal probe is available for to quick and accurate measurement of steps, and inside and outside widths
- Resolution is switchable between 0.005mm/.0002” and 0.01mm/.0005”
- Display features large LCD characters (11mm in height) for easier measurement reading and to reduce eye strain
- Large function buttons on display are positioned for easy operation
- Inclined slider handle improves slider ergonomics
- Rigid construction ensures repeatable measurements
- Base is shaped to provide a secure grip
- Coarse/fine feeding switch for fast adjustments and precise measurements
- Functions include Zero setting, ABD/INC switching, 2 Presets, Probe tip diameter compensation, -/+ switching, Power On/Off, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Required Accessories: | |
|---|
| 192-663-10 | — | Metric | 0-300mm | ±0.02mm | 5.7kg | |
| 192-664-10 | — | Metric | 0-600mm | ±0.04mm | 8.3kg | |
| 192-665-10 | — | Metric | 0-1000mm | ±0.06mm | 15.7kg | |
| 192-670-10 | — | Metric, Inch | 0-300mm / 0-12″ | ±.001″ | 5.7kg | |
| 192-671-10 | — | Metric, Inch | 0-450mm / 0-18″ | ±.0015″ | 7.5kg | |
| 192-672-10 | — | Metric, Inch | 0-600mm / 0-24″ | ±.0015″ | 8.3kg | |
| 192-673-10 | — | Metric, Inch | 0-1000mm / 0-40″ | ±.0025″ | 15.7kg | |
| 192-663-10 |
| 192-664-10 |
| 192-665-10 |
| 192-670-10 |
| 192-671-10 |
| 192-672-10 |
| 192-673-10 |
Технические характеристики
| Technology: | Digimatic |
|---|
| Max Response Speed: | 500mm/s |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1 pc.) 938882 |
|---|
| Battery life: | Approx. 2,000 hours under normal use |
|---|
| SPC Output: | Yes |
|---|
| Resolution: | .005, .01mm |
|---|
| Selectable resolution: | Yes |
|---|
| Optional Accessories: | 192-007, 192-008, 900306, 900321, 900322, 905338, 905409, 905691, 905692, 953639 |
|---|
