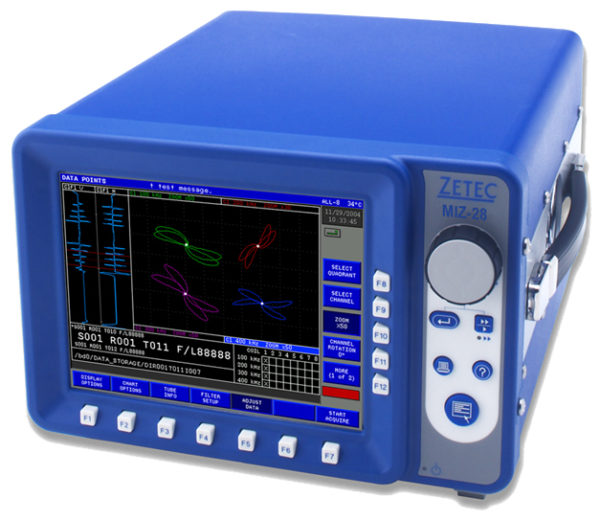

Product Information Benefits
Best Detection Testing with multiplexed frequencies lets you discover issues from surface cracks to deep flaws with speed and reliability.
High-Speed RFT Simultaneous injection gets you the highest testing speeds, and supports remote field testing.
Large Internal Drive A 256 GB internal hard drive provides a massive amount of storage of recorded inspection data.
Rugged Enclosure Its structural design makes it an ideal unit to take on heavy-duty conditions.
Key Features
2 Technologies in 1 Both multiplexed and simultaneous injections are supported, promoting speed, efficiency and RFT capabilities.
Zetec Software Ready Data files are compatible with our Velocity/AN Software, EddynetSuite Analysis, and ET Analysis for Windows.
Probe Pusher Support Provides support for our 3D Probe Pusher with optional conduit gun using a Model III Probe Pusher Control system.
256 GB internal hard drive
Software
Velocity Software
We’ve taken our popular Eddynet PC software and customized it for the balance-of-plant (BOP)/heat exchanger (HX) market. Our easy-to-use Velocity Software is the most effective solution for data analysis and management. It offers significant enhancements over our older ET Analysis and EIM BOP software.
Velocity AN for Analysis
- Bobbin, MRPC and Array Analysis
- Enhanced C-Scan
- E-Resolution
- Multi-datafile Comparison
Velocity DM for Data Management
- Inspection Planning and Management
- Historical Data Management
- Test Plans
- PID Test
General Specifications Weight 16.0 lb (7.3 kg) Dimensions 8.0H x 11.5L x 13.5D in. (20.3 x 29.2 x 34.3 cm) Power 85 264 VAC 47 63 HZ 140 watts maximum, with all options Operating Temperature Range 32°F to 113°F (0°C to 45°C) Storage Temperature Range -40°F to 185°F (-40°C to 85°C) Frequency Range 5 Hz to 10 MHz Display Color 640 x 480 pixel (8.4-in.) active matrix display offers same resolution as computer monitor Drive 0 20 Vpp Sample Rate samples/second Multiplexed mode—Operator adjustable up to 15,600 s/s for 1 frequency, 3,900 s/s for 4 frequencies Sample Rate samples/second SI mode—Operator adjustable up to 15,600 s/s at 4 frequencies Memory 256 GB internal hard drive Memory Flash memory for configurations and firmware updates via USB key Memory Non-volatile SRAM memory for storage of instrument settings Data Recording USB Flash Drive, Magneto Optical Disk, Jaz Drive, Zip Drive Data Recording 500 GB internal hard drive Input/Outputs Ethernet 10/100BaseT for network interface Input/Outputs VGA—output display to VGA monitor or video output with external converter box Input/Outputs RS-232—communication to Model III Probe Pusher Control Input/Outputs USB for printer, keyboard, mass storage device
