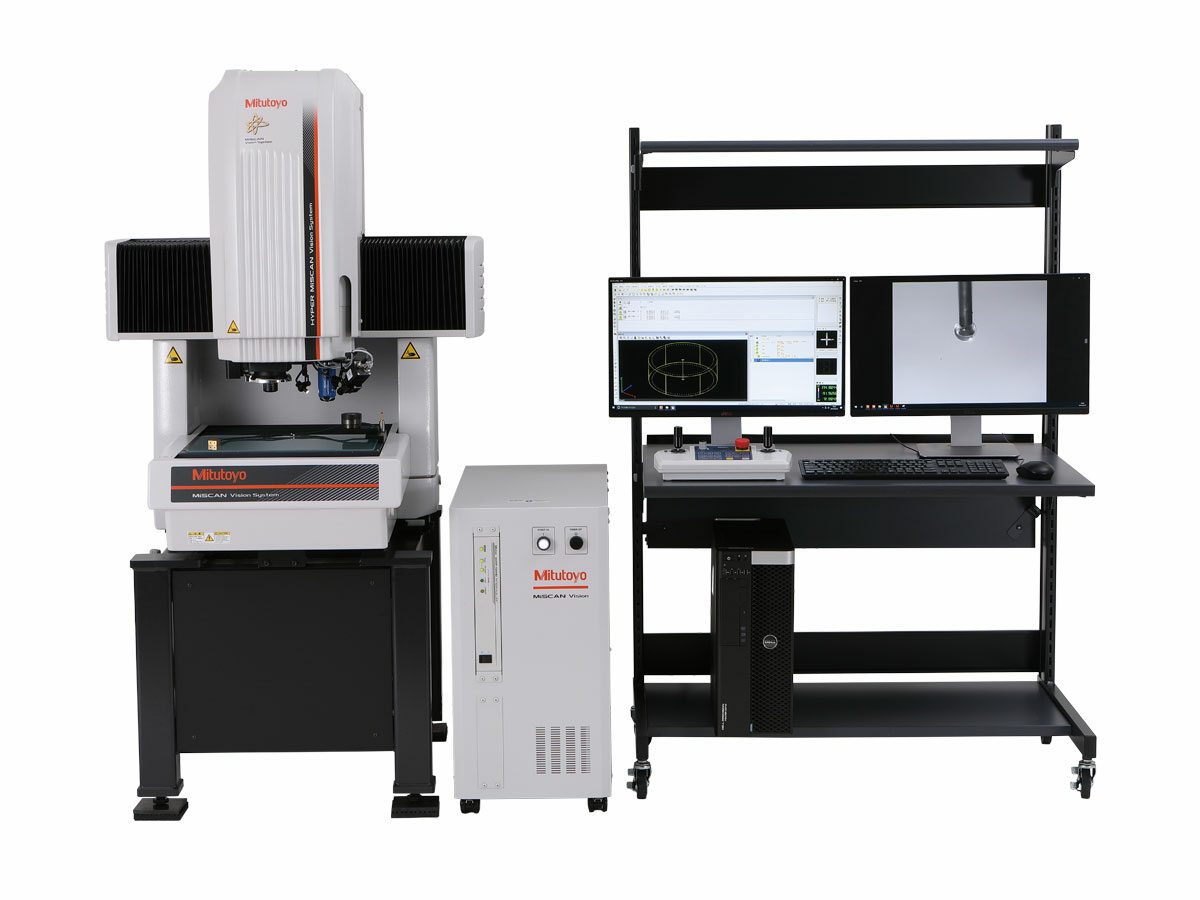

The Mitutoyo MiScan Apex CNC Vision Measuring System completes demanding tasks in vision-based measurement by combining the advantages of both a vision machine and a CMM. The scanning touch probe can be fitted with either a traditional scanning touch probe or Mitutoyo»s MPP-NANO scanning probe. The MPP-NANO, supporting a stylus ball diameter down to 125 µm, is perfect for small form factor features.
- Main frame structure has a fixed-bridge construction achieving high-accuracy measurements
- A Programmable Ring Light (PRL) allows for fine control and direction for optimal measurement illumination to enhance the edge of inclined surfaces and very small steps
- Pattern focus helps measure low-contrast surfaces with more accuracy
- Programmable turreted zoom changes the magnification multiplier from 1X to 6X
- The accuracy of this model conforms to ISO10360-7:2011 (specifications on request)
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Workpiece Max Load: | Workpiece Max Stand Control: | Dimensions: | |
|---|
| 364-511-10S | MVS-X404P1L-D (MiScan Apex 404 SP25) | 16″ / 400mm | 16″ / 400mm | 10″ / 250mm | 88lbs / 40kg | 1277lbs / 579kg | 55 x 40 x 54″ / 1407 x 1027 x 1380.5mm |
Технические характеристики
| Technology: | CNC VMM |
|---|
| Scale Resolution: | 0.0000039370′ / 0.00010mm |
|---|
| Environment: | 68°F
20°C |
|---|
| Camera Type: | B&W CCD |
|---|
| Field of View: | 0.0016 x 0.0012 — 0.4937 x 0.3701′ / 0.04 x 0.03 — 12.54 x 9.4mm |
|---|
| Zoom Type: | Internal Turret |
|---|
| Magnification: | 16x — 4800x |
|---|
| Illumination System: | — |
|---|
| Required Air Pressure: | 0.5 Mpa — 0.9 Mpa |
|---|
| Touch Trigger Probe: | No |
|---|
| Color Lighting: | No |
|---|
| Optical 3D Scanning (PFF): | No |
|---|
| Laser Tracking Autofocus (TAF): | No |
|---|
| Vibration Stand: | Optional |
|---|
| 10360-4 MPETHP/MPTTHP SP25: | 2.5 |
|---|
| 10360-4 MPETHP/MPTTHP MPP-NANO: | 0.6 |
|---|
| ISO 10360-5:2010PFTU,MPE SP25: | 1.9 |
|---|
| 10360-5:2010PFTU,MPE MPP: | 0.6 |
|---|
