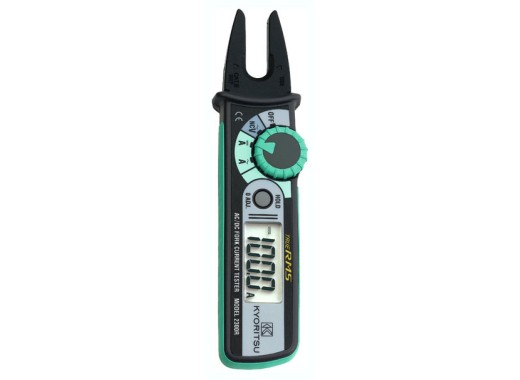

The Kyoritsu 2300R mini fork current tester is a very compact true RMS AC/DC current clamp which can measure up to 100A. Due to the fact that this current clamp has a fork-type design, it is not necessary to close the loop around a conductor. This makes it easy to measure in very compact spaces. The clamp has a built-in warning which notifies a user if an AC voltage is present with an audible signal. Next to this, the 2300R features auto power-off, zero-adjust and data-hold functionalities.
Specifications Current measurements (AC/DC)0 — 100A (±2.0% + 5) Maximum counts1049 Crest factor2.5 Maximum conductor size⌀ 10mm True RMS Yes Extra functionalitiesData hold, auto power-off, zero adjust, NCV, auto-range Safety standardCAT III 300V Power sourceR03 (AAA) x2 Dimensions161.3 x 40.2 x 30.3 mm Weight110g Accessories
The 2300R includes:
- Carrying case
- Batteries
