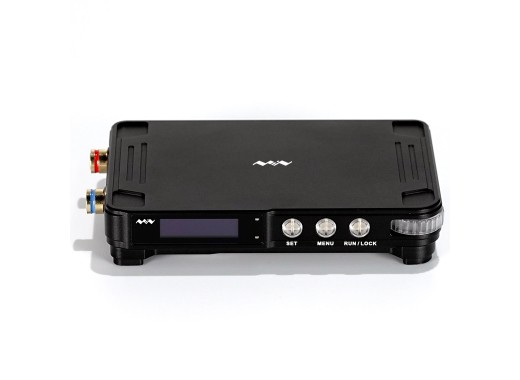

The Miniware MDP-P906 power supply can deliver up to 300W output power. It can go up to 30V and 10A with a resolution of 10mV/2mA. The power supply can be used on its own or it can be controlled by the MDP-M01. With the controller the power supply can also achieve a resolution of up to 1mV/1mA. While you can set the parameters manually you can also use one of the 10 pre-programmed parameters, which can also be changed when you connect it to a PC. With the ability to put them in series or parallel, you can create a stronger power supply without giving up too much space. The input power is between 4.2 V and 30 V (can drop down to 2.7 V after start-up) and does not support main voltage in contrast to normal power supplies, be aware that a power source is not included. Due to its high power but small size, there is an included fan for cooling.
Specifications Input4.2 V — 30 V
100 mA — 14 A
Quick charge 3.0 Total power300 W Outputs1 Voltage range0 — 30 V Current range0 — 10 A Resolution10 mV/2 mA Ripple0.25 mV/2 mA ProtectionInput OVP, UVP, Reverse connection protection
Output OTP, OCP, Backflow protection InterfacesUSB, WIFI Dimensions112 x 66 x 20 mm Weight181 g Accessories
The MDP-P906 comes with:
- 2 x 4mm banana to alligator clip cables
