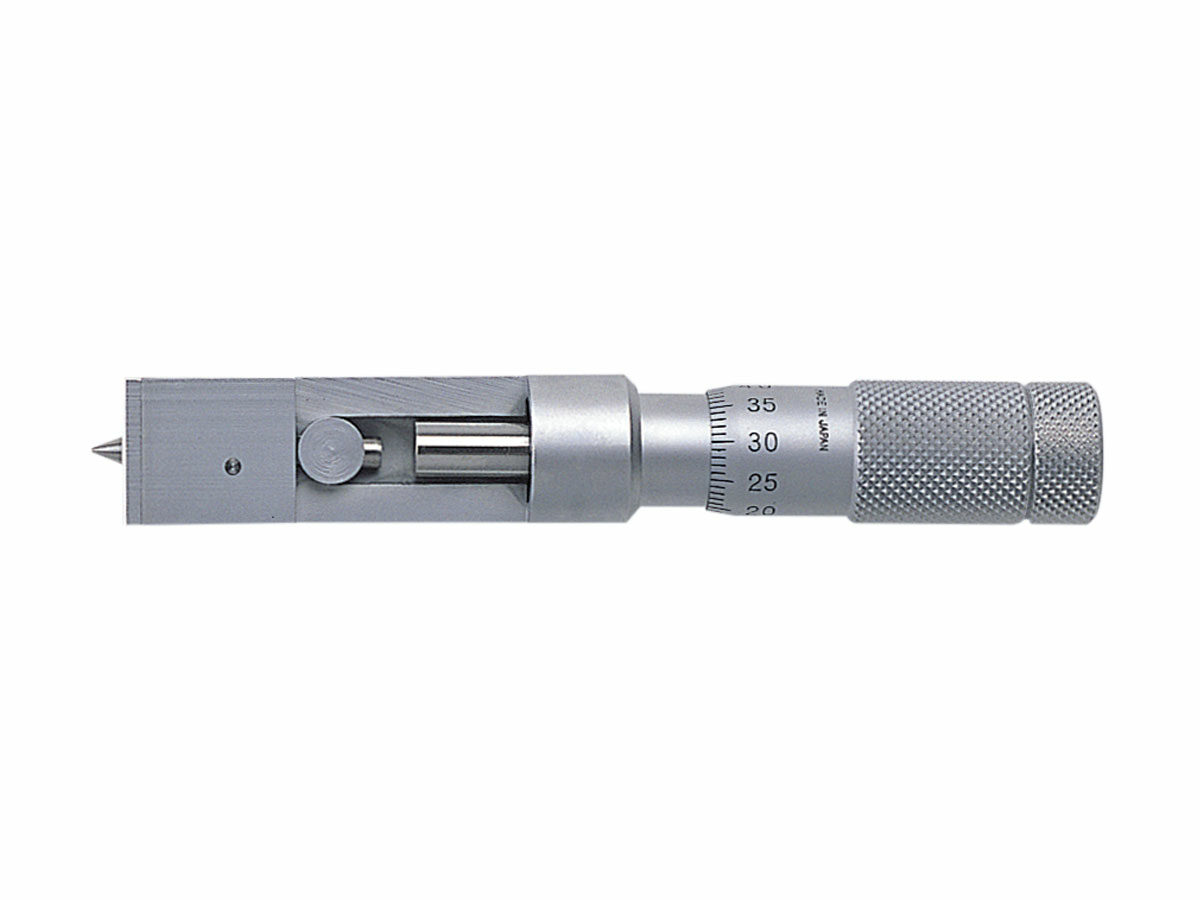

The Mitutoyo can seam micrometer is constructed with high-grade tool steel in our own manufacturing facilities in Japan, ensuring the micrometer is made to our precise standards. The micrometer»s ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. An inch Vernier scale provides precise outside diameter measurements.
- Available in Metric and Inch models
- Micrometers are available for steel, aluminum and sprayer cans
- The spindle and anvils are constructed of hardened steel for durability
- Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Supplied in fitted carton
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Remarks: | |
|---|
| 147-103 | — | Metric | 0-13mm | ±3µm | 0.01mm | for steel cans |
| 147-104 | — | Inch | 0-0.5″ | ±0.00015″ | 0.001″ | for steel cans |
| 147-105 | — | Metric | 0-13mm | ±3µm | 0.01mm | for aluminum cans |
| 147-106 | — | Inch | 0-0.5″ | ±0.00015″ | 0.001″ | for aluminum cans |
| 147-201 | — | Inch | 0-0.5″ | ±0.00015″ | 0.001″ | for sprayer cans |
| 147-202 | — | Metric | 0-13mm | ±3µm | 0.01mm | for sprayer cans |
| 147-103 |
| 147-104 |
| 147-105 |
| 147-106 |
| 147-201 |
| 147-202 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Mass: | 65g |
|---|
