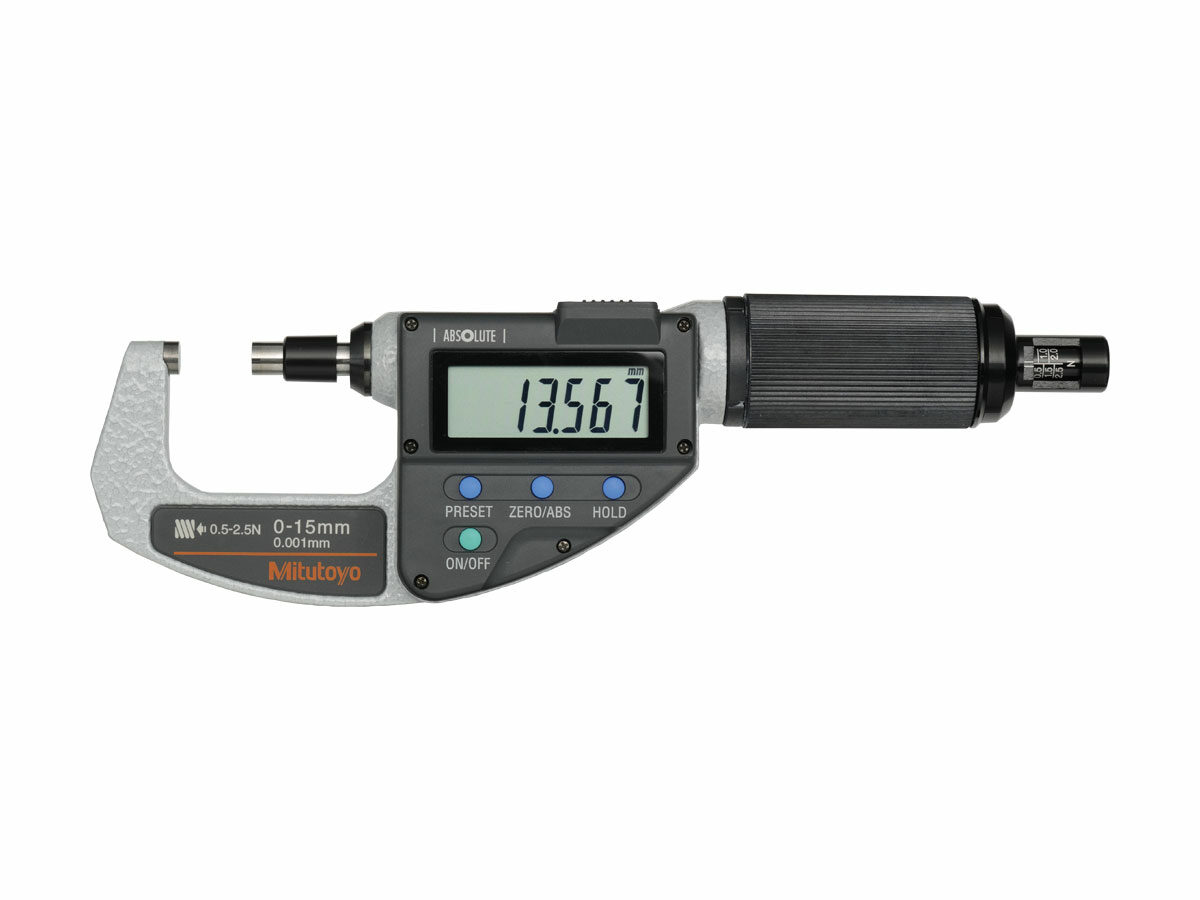

The Mitutoyo ABSOLUTE Digimatic micrometer»s adjustable measuring force capabilities accommodates measurements of both soft and hard materials in a variety of applications. The repeatability of the automatically applied measuring force allows operators of all skill levels to perform highly accurate measurements, therefore saving time and money.
- Two different adjustable measuring forces are available: 0.5-2.5N or 2-10N
- The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy
- Non-rotating spindle and the new ratchet friction thimble
- Speedy spindle feed of 10mm/rev. and .4”/rev for inch/metric model
- ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Elimination of overspeed errors provides a higher measurement reliability and repeatability
- Available with SPC data output capabilities
- Functions include Origin Set, Zero/ABS, Hold, Function Lock, Auto Power On/Off, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Includes a standard bar to set the origin point (for models with 15-30mm / .6-1.2” range)
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Mass: | Measuring Force: | Measuring Force Increments: | Flatness: | Parallelism: | |
|---|
| 227-215-20 | — | Metric, Inch | 0-0.4″ / 0-10.16mm | 0.00005″ / 0.001mm | ±0.0001″ | 340g | 2-10N | 2, 4, 6, 8, 10N | — | 0.00008″ or less |
Технические характеристики
| Technology: | Digimatic |
|---|
| SPC Output: | Yes |
|---|
| Ratchet/Thimble: | Ratchet Friction Thimble |
|---|
| Measuring Faces: | Carbide tipped |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1pc.) 938882 |
|---|
| Battery Life: | Approx. 5 years under normal use |
|---|
| Optional Accessories: | 05CZA662, 05CZA663 |
|---|
