Высокоточная микрометрическая головка Mitutoyo с мелкой градуировкой и невращающимся шпинделем обеспечивает высокоточную регулировку предметного столика с подачей шпинделя 0,5 мм/об. Двунаправленная градуировка облегчает чтение в обоих направлениях.
Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.

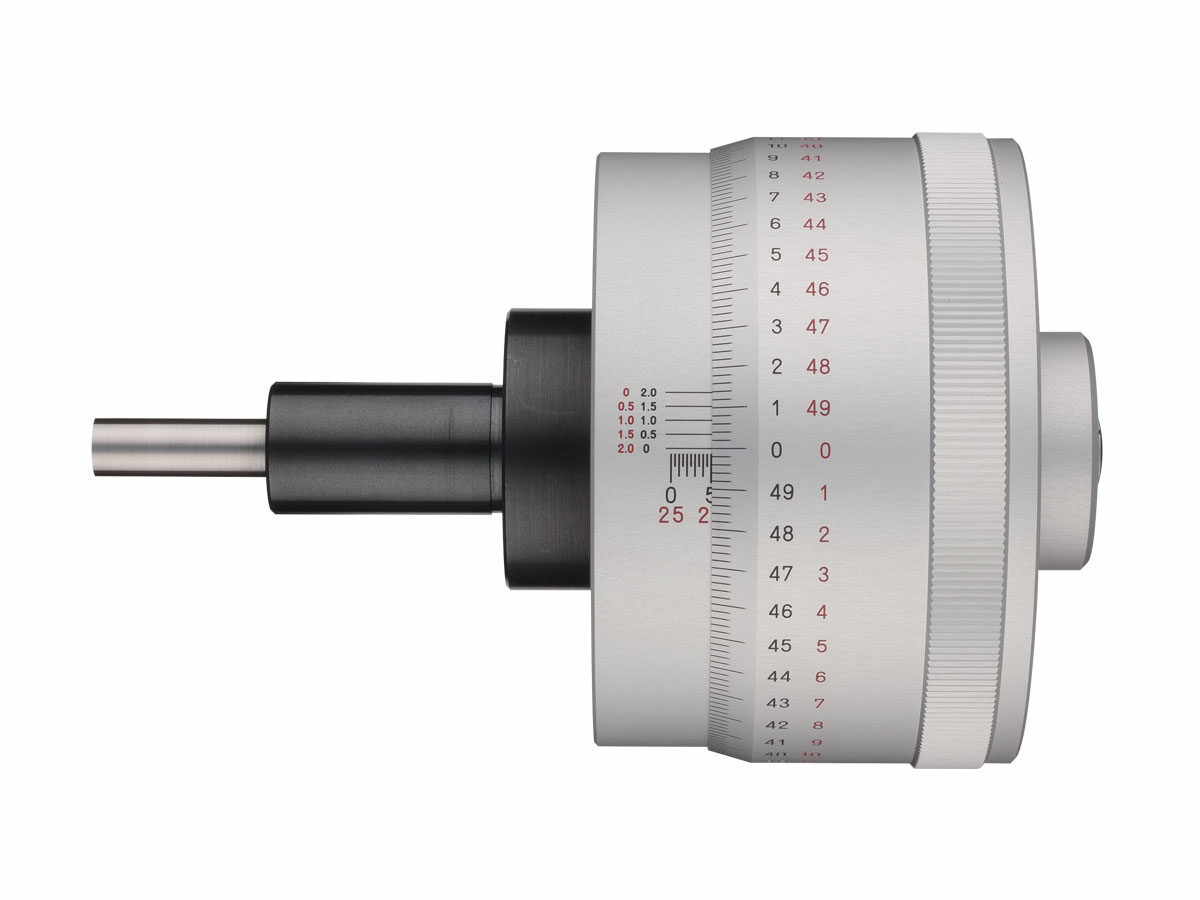

The fine-feeding spindle (0.5mm per revolution) on the Mitutoyo high accuracy micrometer head allows for highly precise stage movements and adjustments. The large diameter thimble is easy to turn, and the bi-directional graduation is easy to read in both directions. The non-rotating spindle reduces torsion on the stage or workpiece for added reliability. The spindle»s flat measuring face is constructed of carbide and is lapped for lasting precision.
Available in Metric and Inch models
Mic head has a 85.5mm / 3.37” thimble diameter
Spindle range is 25mm / 1”
Spindle diameter 8mm / .315”
Spindle pitch is 0.5mm / .0197” per rev
Mic head total length (at stroke end) 4mm / 6.31”
Flat spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time
Scale surface uses white anodized aluminum that resists corrosion
