Микрометрические головки — общий тип — средний диаметр 8 мм

Стандартная микрометрическая головка среднего размера Mitutoyo для тяжелых условий эксплуатации имеет больший диаметр шпинделя и может выдерживать интенсивное использование микрофонных головок универсального типа.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

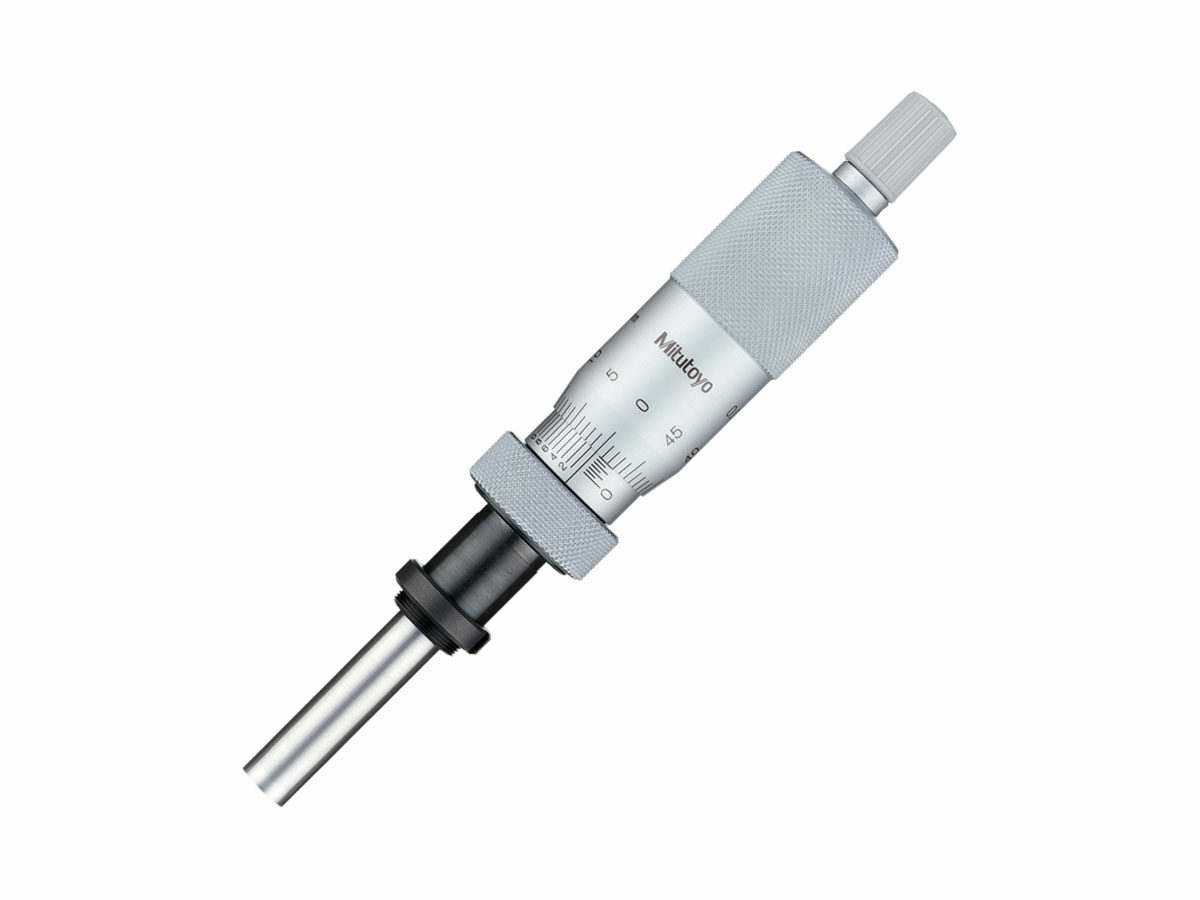

The Mitutoyo heavier duty micrometer head has a large spindle diameter of 8mm constructed of hardened steel for precision adjustments and measurements with heavy-duty use. Its carbide-tipped spindle is exceptionally flat, accurate and durable.

Available in Metric and Inch models
A long spindle type is available for a variety of applications
Spindle ranges available are: is 25mm / 1” and 50mm / 2”
Mic head has a 21mm thimble diameter
Spindle diameter is 8mm / .314”
Mic head total length (at stroke end) is 5mm / 5.69”
Mounting stem diameter is 12mm / .5”
Spindle faces have lapped surfaces and are constructed of carbide. Available in spherical or flat types
Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements

Order No.:	Product Image:	Units:	Range:	Accuracy:	Graduation:	Ratchet/Thimble:	Stem Diameter:	Stem:	Spindle pitch:	Spindle Lock:	Remarks:

Order No.:

151-211	—	Metric	0-25mm	±2µm	0.001mm	Ratchet Stop	12mm	w/clamp nut	0.5mm	Yes	w/vernier
151-213	—	Metric	0-25mm	±2µm	0.01mm	Ratchet Stop	12mm	w/clamp nut	0.5mm	Yes	—
151-214	—	Metric	0-25mm	±2µm	0.01mm	Ratchet Stop	12mm	Plain	0.5mm	Yes	—
151-221	—	Metric	0-25mm	±2µm	0.001mm	Ratchet Stop	12mm	w/clamp nut	0.5mm	No	w/vernier
151-222	—	Metric	0-25mm	±2µm	0.001mm	Ratchet Stop	12mm	Plain	0.5mm	No	w/vernier
151-223		Metric	0-25mm	±2µm	0.01mm	Ratchet Stop	12mm	w/clamp nut	0.5mm	No	—
151-224	—	Metric	0-25mm	±2µm	0.01mm	Ratchet Stop	12mm	Plain	0.5mm	No	—
151-225	—	Metric	0-25mm	±2µm	0.01mm	Plain Thimble	12mm	Plain	0.5mm	Yes	—
151-226	—	Metric	0-25mm	±2µm	0.01mm	Plain Thimble	12mm	w/clamp nut	0.5mm	Yes	—
151-227	—	Metric	0-25mm	±2µm	0.01mm	Plain Thimble	12mm	Plain	0.5mm	No	—
151-228	—	Metric	0-25mm	±2µm	0.01mm	Plain Thimble	12mm	w/clamp nut	0.5mm	No	—
151-237	—	Inch	0-1″	±0.0001″	0.0001″	Ratchet Stop	0.5″	w/clamp nut	0.025″	No	w/vernier
151-238	—	Inch	0-1″	±0.0001″	0.0001″	Ratchet Stop	0.5″	Plain	0.025″	No	w/vernier
151-239	—	Inch	0-1″	±0.0001″	0.0010″	Ratchet Stop	0.5″	w/clamp nut	0.025″	No	—
151-240	—	Inch	0-1″	±0.0001″	0.0010″	Ratchet Stop	0.5″	Plain	0.025″	No	—
151-241	—	Inch	0-1″	±0.0001″	0.0010″	Plain Thimble	0.5″	Plain	0.025″	Yes	—
151-242	—	Inch	0-1″	±0.0001″	0.0010″	Plain Thimble	0.5″	w/clamp nut	0.025″	Yes	—
151-243	—	Inch	0-1″	±0.0001″	0.0001″	Ratchet Stop	0.5″	Plain	0.025″	Yes	w/vernier
151-244	—	Inch	0-1″	±0.0001″	0.0001″	Ratchet Stop	0.5″	w/clamp nut	0.025″	Yes	w/vernier
151-255		Metric	0-50mm	±4µm	0.01mm	Ratchet Stop	12mm	w/clamp nut	0.5mm	No	—
151-256		Metric	0-50mm	±4µm	0.01mm	Ratchet Stop	12mm	Plain	0.5mm	No	—
151-259	—	Metric	0-50mm	±4µm	0.01mm	Plain Thimble	12mm	w/clamp nut	0.5mm	No	—
151-260	—	Metric	0-50mm	±4µm	0.01mm	Plain Thimble	12mm	Plain	0.5mm	No	—
151-271		Inch	0-2″	±0.0002″	0.0010″	Ratchet Stop	0.5″	w/clamp nut	0.025″	No	—
151-272	—	Inch	0-2″	±0.0002″	0.0010″	Ratchet Stop	0.5″	Plain	0.025″	No	—

151-211
151-213
151-214
151-221
151-222
151-223
151-224
151-225
151-226
151-227
151-228
151-237
151-238
151-239
151-240
151-241
151-242
151-243
151-244
151-255
151-256
151-259
151-260
151-271
151-272

Технические характеристики

Technology:	Mechanical
Measuring Faces:	Flat (carbide tip)
Scale Surface:	Hard chrome plating
