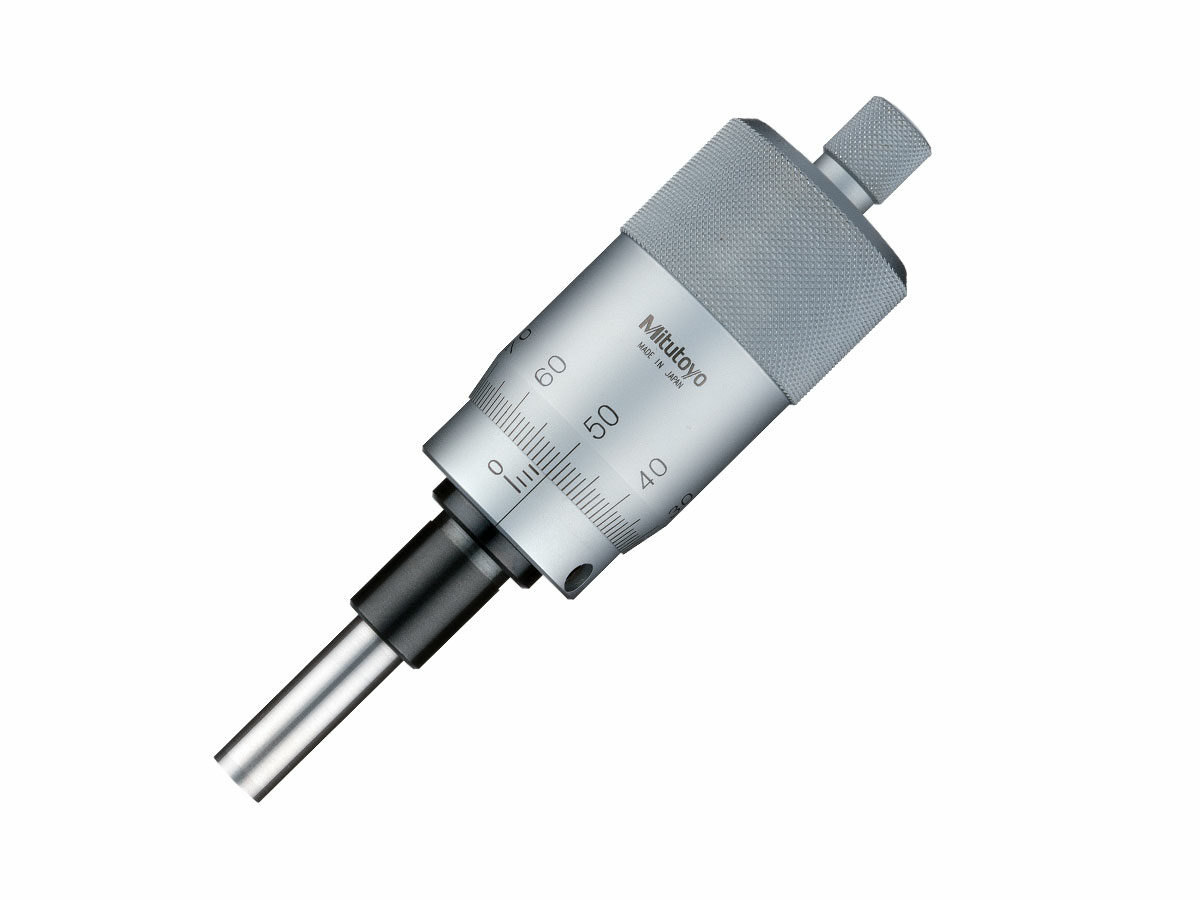

The Mitutoyo quick feeding micrometer head is available in three different lengths and spindle ranges, providing faster adjustments and measurements on many different applications. The flat measuring face is constructed of carbide and is lapped for lasting precision.
- Spindle feeds at 1mm/rev
- Mic head has a 30mm thimble diameter
- Spindle ranges available are 15mm, 25mm and 50mm
- Spindle diameter is 8mm
- Mic head total lengths (at stroke end) are 109mm, 138mm, and 213mm
- Mounting stem diameter is 12mm
- Flat spindle faces have lapped surfaces and are constructed of carbide for more accurate measurements over time
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
| Order No.: | Product Image: | Range: | Accuracy: | Mass: | |
|---|
| 152-102 | — | 0-25mm | ±2µm | 230g |
| 152-103 | ![]() | 0-50mm | ±4µm | 355g |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Graduation: | 0.01mm |
|---|
| Measuring Faces: | Flat (carbide tip) |
|---|
| Stem Diameter: | 12mm |
|---|
| Stem: | Plain |
|---|
| Spindle pitch: | 1mm |
|---|
| Scale Surface: | Hard chrome plating |
|---|
