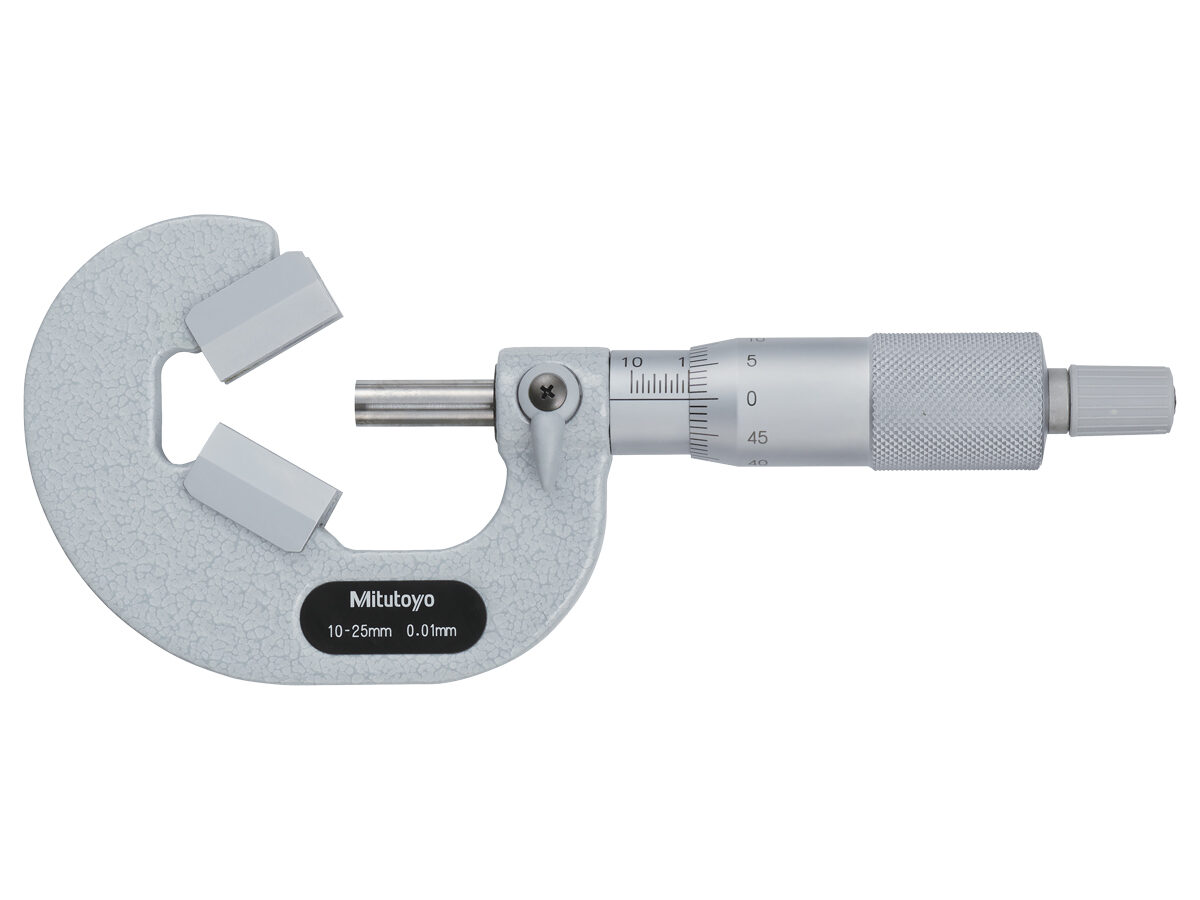

The Mitutoyo V-Anvil micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Available in Metric or Inch models
- V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish for durability and longer lifespan
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Remarks: |
|---|
| Order No.: |
|---|
| 114-101 | — | Metric | 1-15mm | ±4µm | 120g | 0.01mm | w/Groove |
| 114-102 | — | Metric | 10-25mm | ±4µm | 280g | 0.01mm | w/Groove |
| 114-103 | — | Metric | 25-40mm | ±5µm | 400g | 0.01mm | — |
| 114-104 |  | Metric | 40-55mm | ±6µm | 465g | 0.01mm | — |
| 114-105 |  | Metric | 55-70mm | ±6µm | 675g | 0.01mm | — |
| 114-106 |  | Metric | 70-85mm | ±7µm | 910g | 0.01mm | — |
| 114-113 |  | Inch | 1-1.6″ | ±.00025″ | 400g | 0.0010″ | — |
| 114-114 | — | Inch | 1.6-2.2″ | ±.0003″ | 465g | 0.0010″ | — |
| 114-161 | — | Metric | 1-15mm | ±4µm | 120g | 0.01mm | — |
| 114-163 | — | Inch | .05-0.6″ | ±.0002″ | 120g | 0.0010″ | — |
| 114-202 |  | Inch | .09-1″ | ±.0002″ | 280g | 0.0001″ | — |
| 114-204 |  | Metric | 2.3-25mm | ±4µm | 290g | 0.01mm | — |
| 114-101 |
| 114-102 |
| 114-103 |
| 114-104 |
| 114-105 |
| 114-106 |
| 114-113 |
| 114-114 |
| 114-161 |
| 114-163 |
| 114-202 |
| 114-204 |
Технические характеристики
| Technology: | Mechanical |
|---|---|
| SPC Output: | No |
| Measuring Faces: | Carbide tipped (spindle only) |
| Remarks: | 3-Flute |
