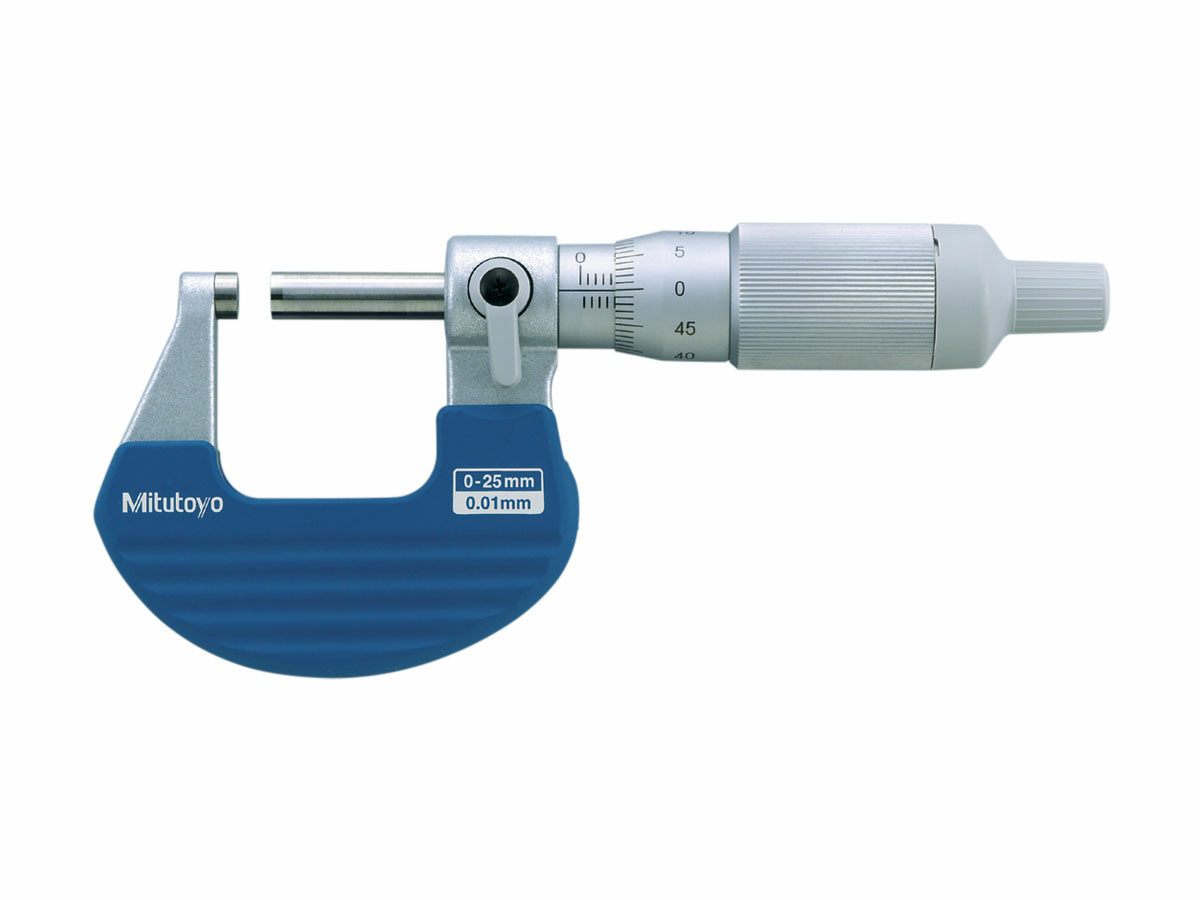

The ratchet thimble on Mitutoyo»s mechanical outside micrometer delivers a smoother, constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring a wide range of different dimensions or easier, one-handed measurements.
- Ratchet functions works both from the thimble and speeder allowing easy one-handed operation
- Carbide measuring faces on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Heat-insulated frame minimalizes thermal expansion for consistent measurements in different environments
- Speeder is always available for quick rotation of the spindle
- Measuring force is 5-10N
- Includes a standard bar except for 0-25mm / 0-1” models
- Provided with Mitutoyo Certificate of Inspection
- Supplied in a plastic, fitted case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Flatness: | Parallelism: | |
|---|
| 102-701 | — | Metric | 0-25mm | ±2µm | 180g | 0.01mm | 0.6µm | 2µm or less |
| 102-702 | — | Metric | 25-50mm | ±2µm | 270g | 0.01mm | 0.6µm | 2µm or less |
| 102-707 | ![]() | Metric | 0-25mm | ±2µm | 180g | 0.001mm | 0.6µm | 2µm or less |
| 102-708 | ![]() | Metric | 25-50mm | ±2µm | 270g | 0.001mm | 0.6µm | 2µm or less |
| 102-717 | ![]() | Inch | 0-1″ | ±.0001″ | 180g | 0.0001″ | — | 0.00008″ or less |
| 102-718 | ![]() | Inch | 1-2″ | ±.0001″ | 270g | 0.0001″ | — | 0.00008″ or less |
| 102-701 |
| 102-702 |
| 102-707 |
| 102-708 |
| 102-717 |
| 102-718 |
Технические характеристики
| Technology: | Mechanical |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Ratchet Thimble |
|---|
| Measuring Force: | 5-10N |
|---|
| Measuring Faces: | Carbide tipped |
|---|
