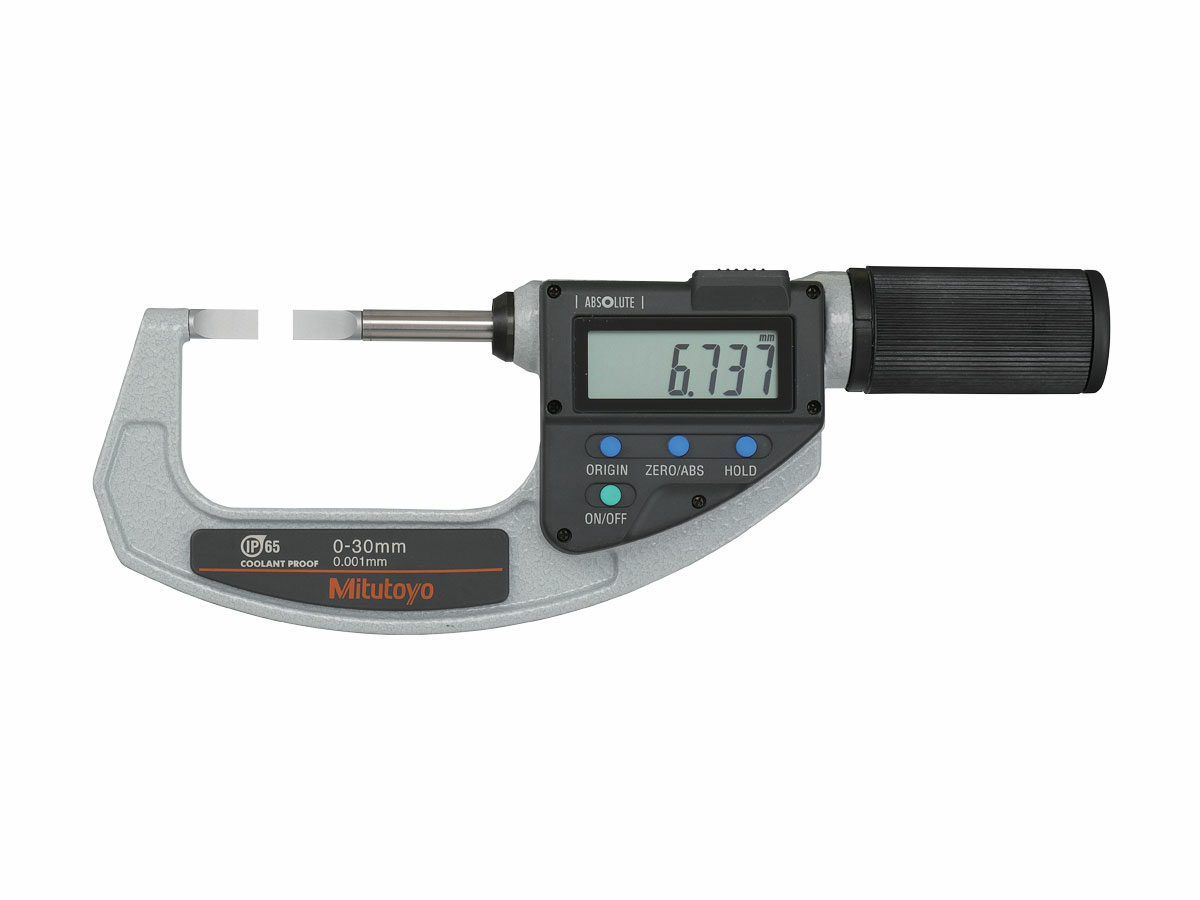

The Mitutoyo Quickmike digital blade micrometer utilizes a blade anvil and spindle for measuring difficult pieces such as groove diameters of shafts and keyways. The non-rotating spindle reduces torsion on softer parts being measured and prevents workpiece deformation and wear with a faster spindle feed. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.
- The Quickmike blade micrometer provides a speedy spindle feed of 10mm / .4” per thimble rotation compared to the conventional micrometer with 0.5mm / .025” per rotation
- Available in Metric and Inch/Metric models
- Ratchet thimble allows for easy single-hand use when measuring objects
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Elimination of overspeed errors provides higher measurement reliability and repeatability
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Knurled friction thimbles provide quick adjustments even when wearing gloves
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Supplied in fitted plastic case
- IP54 protection resists debris, dust and water
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Mass: | Parallelism: | |
|---|
| 422-411 |  | Metric | 0-30mm | — | ±3µm | 350g | 3µm or less |
| 422-411-20 | — | Metric | 0-30mm | 0.001mm | ±3µm | 350g | 3µm or less |
| 422-412 | — | Metric | 25-55mm | — | ±3µm | 490g | 3µm or less |
| 422-412-20 | — | Metric | 25-55mm | 0.001mm | ±3µm | 490g | 3µm or less |
| 422-421 | — | Metric, Inch | 0-1.2″ / 0-30.48mm | .00005″ | ±.00015″ | 350g | .00012″ or less / 3µm or less |
| 422-421-20 | — | Metric, Inch | 0-1.2″ / 0-30.48mm | 0.00005″ / 0.001mm | ±0.00015″ / ±3µm | 350g | 0.00015″ or less / 3µm or less |
| 422-422 | — | Metric, Inch | 1-2.2″ / 25.4-55.88mm | .00005″ | ±.00015″ | 490g | .00012″ or less / 3µm or less |
| 422-422-20 | — | Metric, Inch | 1-2.2″ / 25.4-55.88mm | 0.00005″ / 0.001mm | ±0.00015″ / ±3µm | 490g | 0.00015″ or less / 3µm or less |
| 422-411 |
| 422-411-20 |
| 422-412 |
| 422-412-20 |
| 422-421 |
| 422-421-20 |
| 422-422 |
| 422-422-20 |
Технические характеристики
| Technology: | Digitmatic |
|---|
| IP Rating: | IP65 |
|---|
| SPC Output: | Yes |
|---|
| Ratchet/Thimble: | Ratchet Thimble |
|---|
| Anvil Type: | Type A |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1 pc.) 938882 |
|---|
| Battery Life: | Approx. 5 years under normal use |
|---|
| Optional Accessories: | 05CZA662, 05CZA663 |
|---|
