Микрометр глубины Mitutoyo Digimatic со сменными стержнями измеряет широкий диапазон глубин с высокой точностью. Измерения отображаются на цифровом ЖК-дисплее с выходом SPC для легкой автоматической записи.
Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.

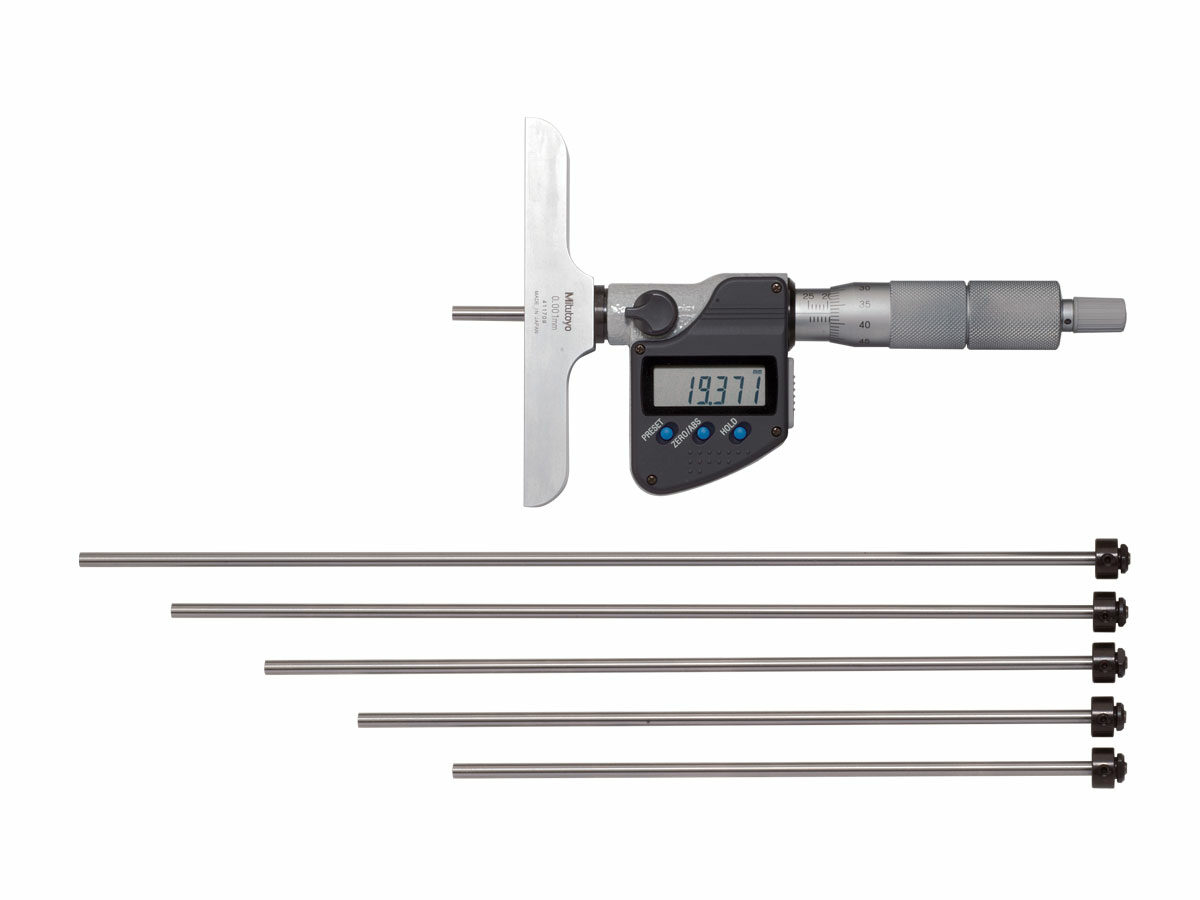

The Mitutoyo digital interchangeable rod type depth micrometer offers great versatility for measuring a range of depths with the included extension rods. The depth micrometer»s rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements.
Available in Metric and Inch/Metric models
Available in two different ranges: 0-150mm/0-6” and 0-300mm/0-12”
Smaller range models include 6 interchangeable rods
Larger range models include 12 interchangeable rods
Rod length can be adjusted in 25mm/1” increments
Rod diameters are 4mm
Measuring rod clamps provide added measurement stability
SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
Functions include Origin Set, Zero Setting, Data Hold, Data Output, Function Lock, 2 Presets and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Supplied with a fitted plastic case
Order No.:
Product Image:
Units:
Range:
Resolution:
Accuracy:
Flatness of reference surface base:
Flatness of measuring face:
Parallelism between reference face and measuring rod face:
Zero point error of rods:
Measuring rod diameter:
Base size:
Rod quantity:
Order No.:
329-250-30
Metric
0-150mm
0.001mm
±3µm
2µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
4µm
4mm
101.6 x 16mm
6
329-251-30
Metric
0-300mm
0.001mm
±3µm
2µm
0.3µm
(4+L/50)µm, L=Max. measuring length (mm)
6µm
4mm
101.6 x 16mm
12
329-350-30
Metric, Inch
0-152.4mm / 0-6″
0.001mm / 0.00005″
±3µm / ±.00015″
2µm / 0.00008″
0.3µm / 0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
0.0002″
0.157″
4 x .63″
6
329-351-30
Metric, Inch
0-304.8mm / 0-12″
0.001mm / 0.00005″
±3µm / ±.00015″
2µm / 0.00008″
0.3µm / 0.000012″
[.00016+(.00004XR/2)], R=Max. measuring range (inch)
