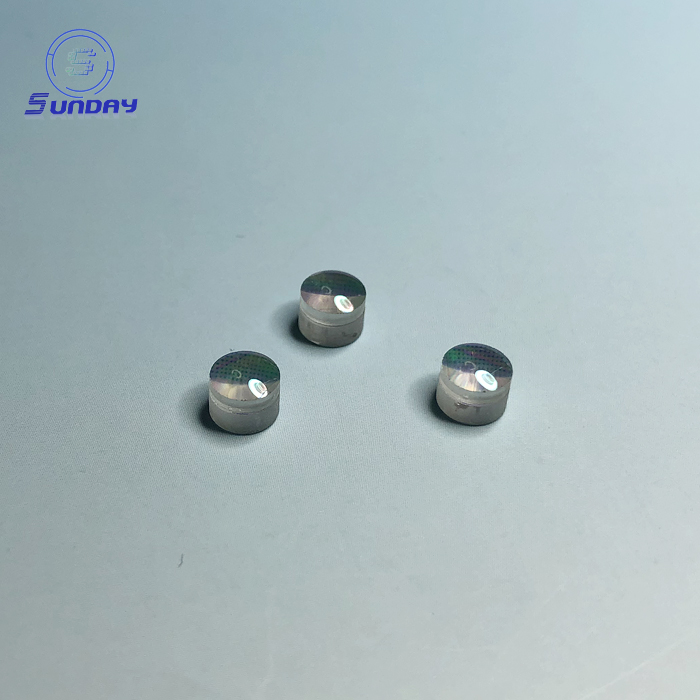

Sunday Optics has the ability to manufacture micro (small diameter and Small R), these lenses mainly used for endoscope and medical equipment. the structure are plano convex lens, plano concave lens, mensicus lens, bi convex lens, bi concave lens, achromatic lenses,Diameter can be 0.1mm.
Specifications:
| Structure | Micro lens |
| Material | Optical glass, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe ZnS, Sapphire |
| Diameters Available | 0.1mm available |
| Diameter Tolerance | +0.00/-0.01mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | О»/10 @632.8nm or customer design |
| Thickness tolerance | +0/-0.02mm |
| Clear Aperture | >,90% of Diameter or full CA |
| Chamfer | 0.05-0.5mmx45degree, according to customers needs. |
| Centeration | 30 arcsec |
| Coating | Single Mag2, Multiple Layers AR Coating A: 350-650nm B: 650-1050nm C: 1050-1585nm D: 3-5um 2-14um E: Customer Design |
