Features:
- 250 kHz to 3 GHz (Standard)
- 120 MHz (Internal baseband generator)
- 150 MHz (External IQ input)
- ±0.5 dB (Absolute level accuracy)
- ±0.2 dB typical (Linearity)
- 1 GB = 256 Msamples/channel (Standard)
- Adds and outputs two signals, such as wanted signal +
- Interference signal or wanted signal + AWGN
- 1 kbps to 20 Mbps (Standard)

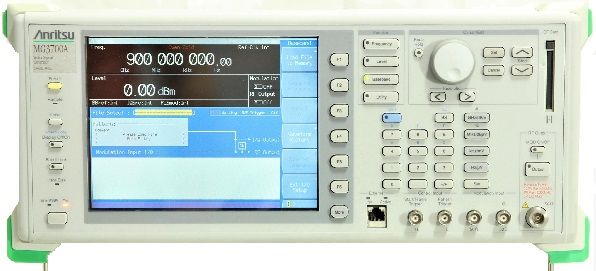

The MG3700A Vector Signal Generator is based on a 160-MHz arbitrary waveform generator, including a wide vector modulation bandwidth and large capacity baseband memory. The MG3700A supports digital modulation signals for a wide range of wireless systems, supporting evaluation of general-purpose mobile communications, such as mobile phones as well as wireless LANs. Anritsu»s IQproducer software can create waveform data for transfer to the MG3700A via 100BASE-TX Ethernet. In addition, IQ sample data files (ASCII) created using general Electronic Design Automation (EDA) tools such as MATLAB can also be converted to waveform patterns for the MG3700A.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 3 GHz |
