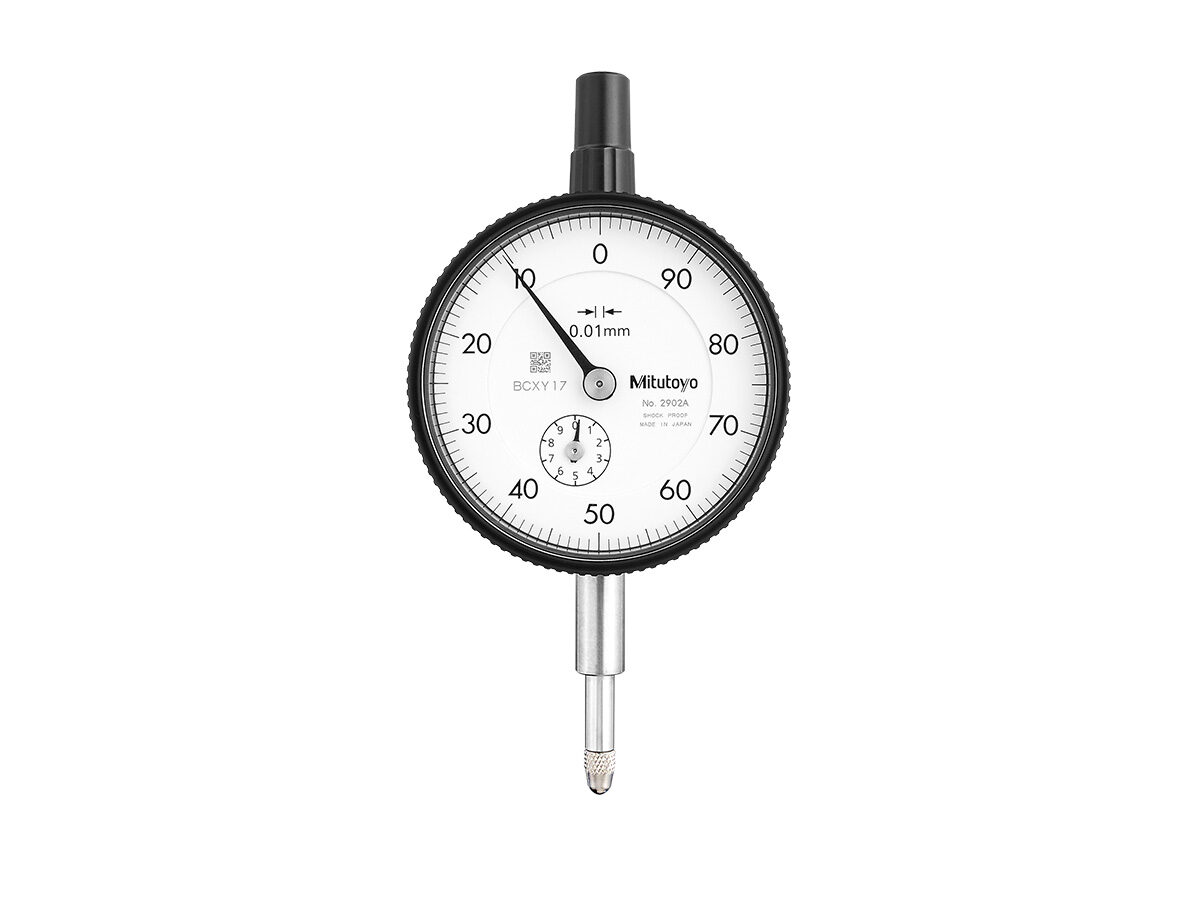

Метрический циферблатный индикатор ANSI/AGD, серия 2

Циферблатный индикатор стандартного диаметра Mitutoyo Series 2 с метрическими показаниями отличается простотой, точностью и долговечностью для любого применения, что делает его нашим самым популярным индикатором.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo metric reading dial indicator performs with excellent accuracy and reliability, and it is available in several graduations and ranges for use in the widest range of applications. The stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. Secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

Available in metric models only
Offered with flat back or lug back for mounting purposes
Available in several different graduations and ranges
A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
Unique shock-proof mechanism protects against shock from sudden spindle retraction
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
4-Screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Manufactured to meet ANSI/AGD standards
Supplied in a fitted plastic case

Order No.:	Product Image:	Graduation:	Max Range:	Range revolution:	Dial reading:	Back Type:	Accuracy revolution:	Accuracy:	Measuring Force:	Shockproof:	Jeweled Bearing:

Order No.:

2046A-01	—	0.01mm	10mm	1mm	0-100	Lug Back	0.01mm	±0.013mm	1.4 or lessN	—	—
2046A-11	—	0.01mm	10mm	1mm	0-100	Lug Back	0.01mm	±0.013mm	1.4 or lessN	—	Yes
2046AB-01	—	0.01mm	10mm	1mm	0-100	Flat Back	0.01mm	±0.013mm	1.4 or lessN	—	—
2046AB-11	—	0.01mm	10mm	1mm	0-100	Flat Back	0.01mm	±0.013mm	1.4 or lessN	—	Yes
2047A-01	—	0.01mm	10mm	1mm	0-50-0	Lug Back	0.01mm	±0.013mm	1.4 or lessN	—	—
2047A-11	—	0.01mm	10mm	1mm	0-50-0	Lug Back	0.01mm	±0.013mm	1.4 or lessN	—	Yes
2047AB-01	—	0.01mm	10mm	1mm	0-50-0	Flat Back	0.01mm	±0.013mm	1.4 or lessN	—	—
2047AB-11	—	0.01mm	10mm	1mm	0-50-0	Flat Back	0.01mm	±0.013mm	1.4 or lessN	—	Yes
2050AB-01	—	0.01mm	20mm	1mm	0-100	Flat Back	0.01mm	±0.02mm	2.0 or lessN	—	—
2056A-01	—	0.01mm	25mm	1mm	0-100	Lug Back	0.01mm	±0.025mm	2.5 or lessN	—	—
2056AB-01	—	0.01mm	25mm	1mm	0-100	Flat Back	0.01mm	±0.025mm	2.5 or lessN	—	—
2109A-11	—	0.001mm	1mm	0.2mm	0-100-0	Lug Back	0.003mm	±0.004mm	1.5 or lessN	Yes	Yes
2109AB-11	—	0.001mm	1mm	0.2mm	0-100-0	Flat Back	0.003mm	±0.004mm	1.5 or lessN	Yes	Yes
2119A-11	—	0.001mm	5mm	0.2mm	0-100-0	Lug Back	0.007mm	±0.01mm	1.5 or lessN	—	Yes
2119AB-11	—	0.001mm	5mm	0.2mm	0-100-0	Flat Back	0.007mm	±0.01mm	1.5 or lessN	—	Yes
2230SB-01	—	0.01mm	2.5mm	1mm	0-100	Flat Back	0.01mm	±0.01mm	1.4 or lessN	—	—
2231A-01	—	0.01mm	2.5mm	1mm	0-50-0	Lug Back	0.01mm	±0.01mm	1.4 or lessN	—	—
2231AB-01	—	0.01mm	2.5mm	1mm	0-50-0	Flat Back	0.01mm	±0.01mm	1.4 or lessN	—	—
2902A-01	—	0.01mm	10mm	1mm	100-0	Lug Back	0.01mm	±0.013mm	2.0 or lessN	—	—
2902AB-01	—	0.01mm	10mm	1mm	100-0	Flat Back	0.01mm	±0.013mm	2.0 or lessN	—	—
